Overrun brake KNOTT KF17-E (GF)
Code: 60006Related products
Product detailed description
This ramp brake is designed for both top and bottom mounting on "V" shaped drawbar.

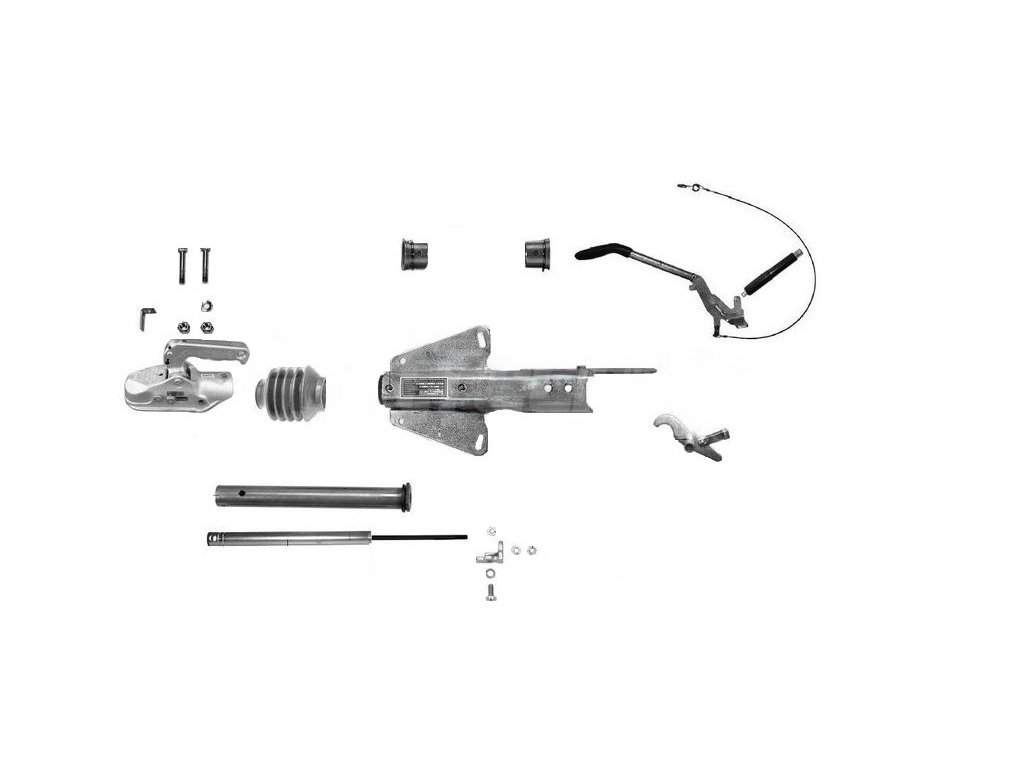

The brake is supplied complete, including the ball clutch and safety cable.
for total trailer weight: 1100 to 1700 kg
max. permissible vertical load: 100 kg
combinable with bike units: KNOTT type 16-1365 (160x35), 20-2425/1 (200x50) and 25-2025 (250x40)
Additional parameters
| Category: | Overrun brakes for V-shaped drawbar trailers |
|---|---|
| EAN: | 60006004 |
| maximální povolené svislé zatížení (kg): | 100 |
| drawbar mountable: | V-drawbar |
| for total trailer weight max. (kg): | 1700 |
| for total trailer weight min. (kg): | 1100 |
| for wheeled units: | KNOTT type 16-1365 (160x35), type 20-2425/1 (200x50) and type 25-2025 (250x40) |
| bottom mounting: | Yes |
| connecting device: | EM 220 RA |
| top mounting: | Yes |
