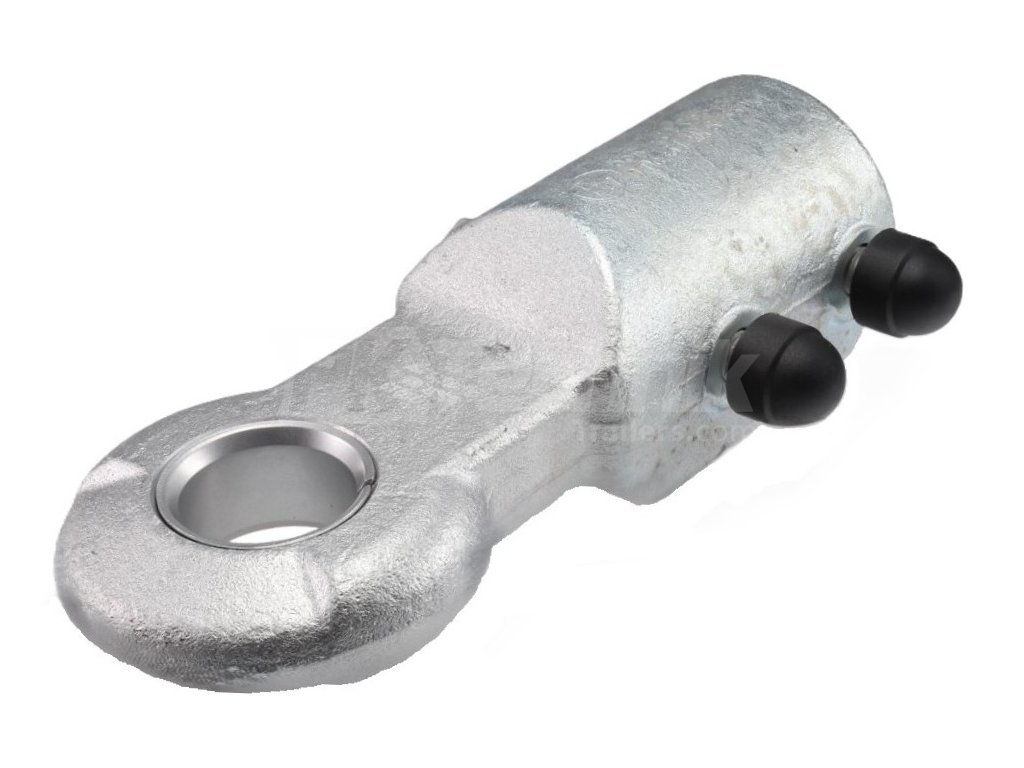

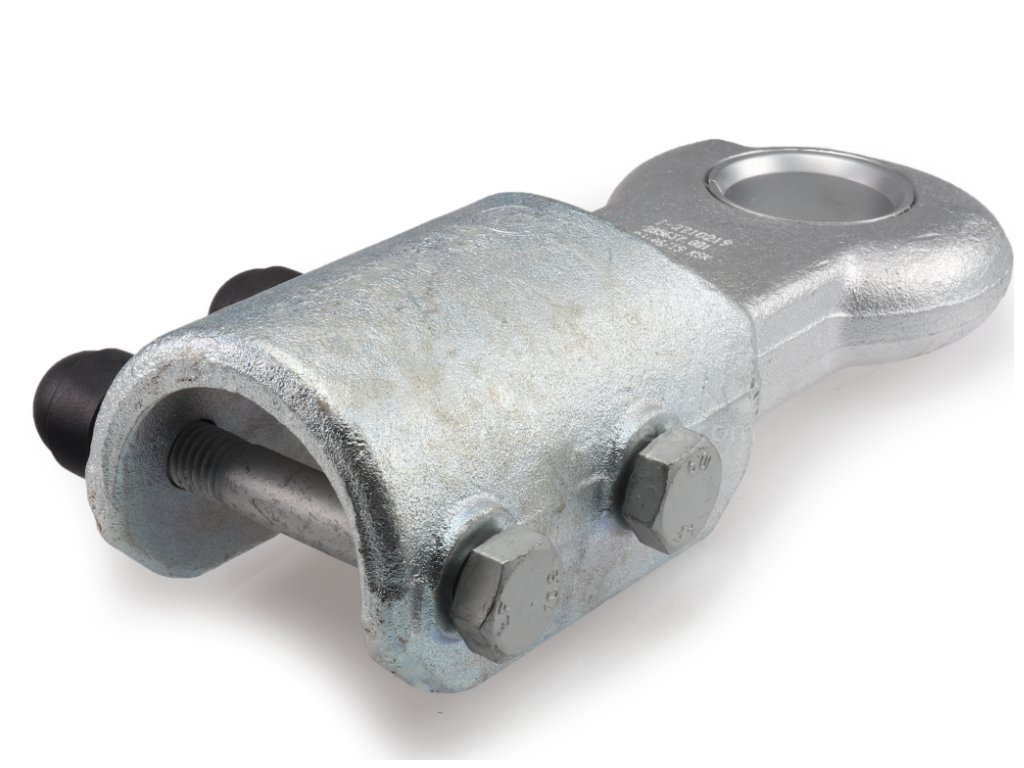

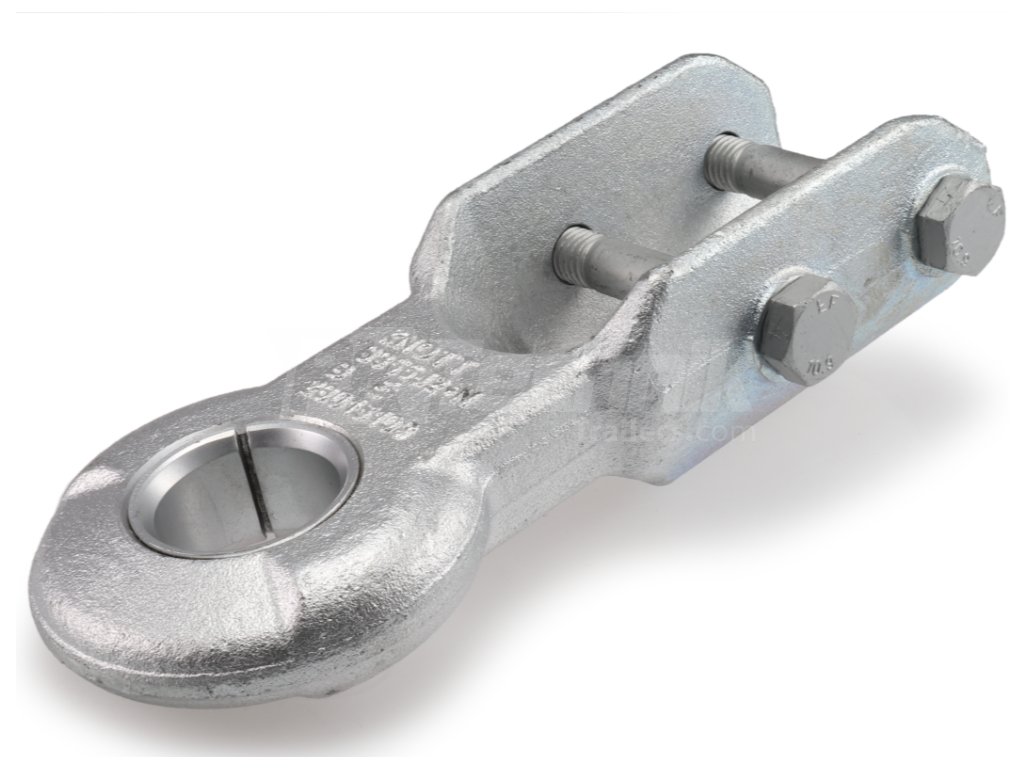

Towing eye DIN 40 mm KNOTT (for 60 mm pipe)
Code: 80020Related products
Product detailed description
- Towing eye DIN 40 for overrun brake KNOTT KFG 35 D, or for towing tube KNOTT dia. 60 mm

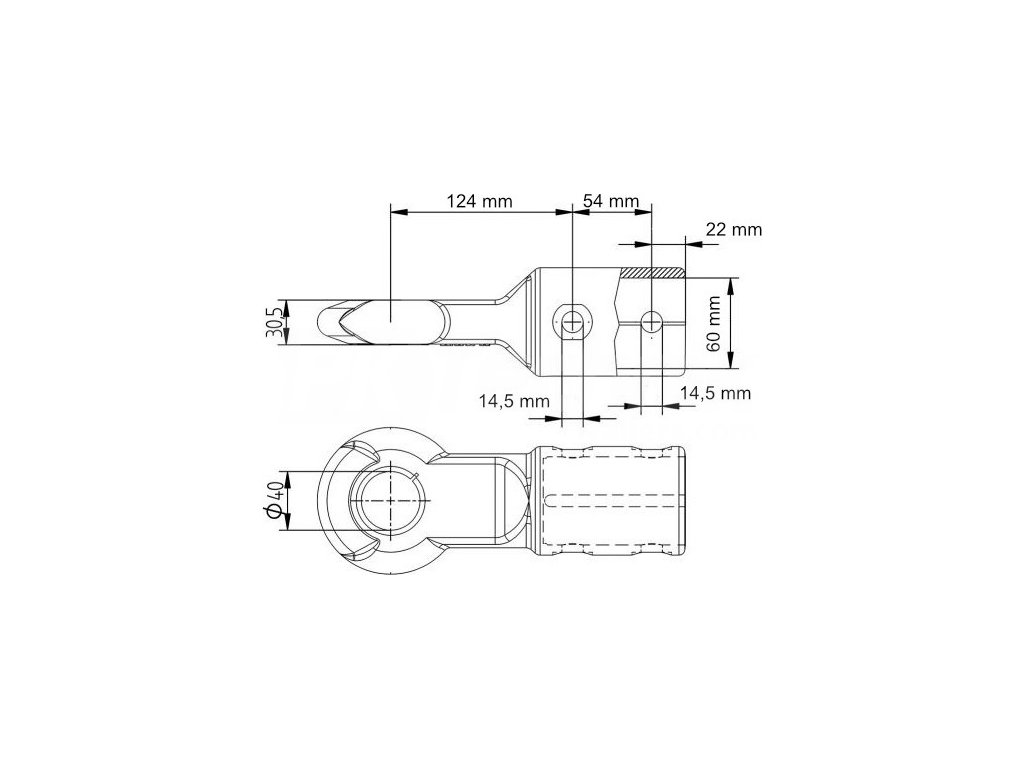

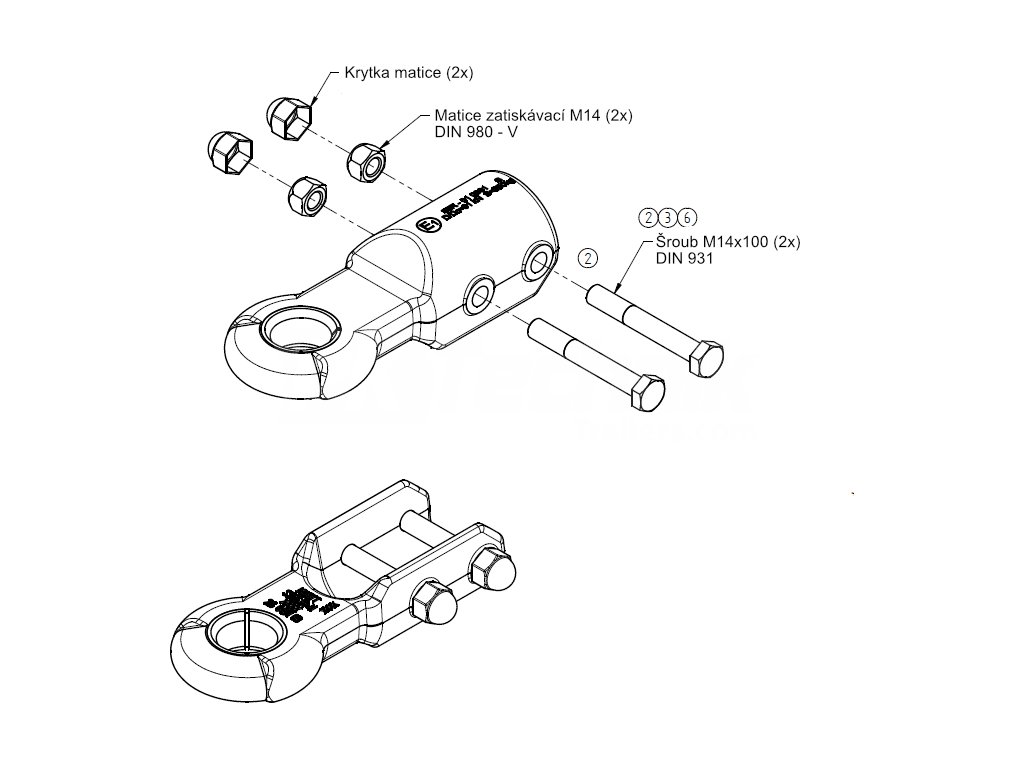

- Mounting 2x screw M14 horizontally, screw pitch 54 mm
- Maximum technically permissible/permitted weight of a braked trailer 3500 kg
- Max. vertical load 350 kg, D-/DC-Wert 31 kN
- Form DIN 74054-40A
Additional parameters
| Category: | Towing eyes |
|---|---|
| EAN: | 80020004 |
| materiál: | litina |
| pro přívěsy: | brzděné |
| maximální povolené svislé zatížení (kg): | 200 |
| eye assembly: | for pipe diameter 60 mm |
| otvory pro uchycení: | 2x horizontálně |
| for trailers: | braked |
| velikost horizontálních šroubů: | M14 |
