Hub pin AL-KO wheel unit 2051, pin dia. 39 mm 0°15' Delta (ETI 811942)

Code: 101452

Not rated Rating details

79,30 € / pcs 95,90 € incl. VAT

ORDERED

Wheel brake unit hub pin AL-KO 2051 for axle AL-KO DELTA SIN14-1 ETI811942.
Pin diameter 39 mm (0º15').

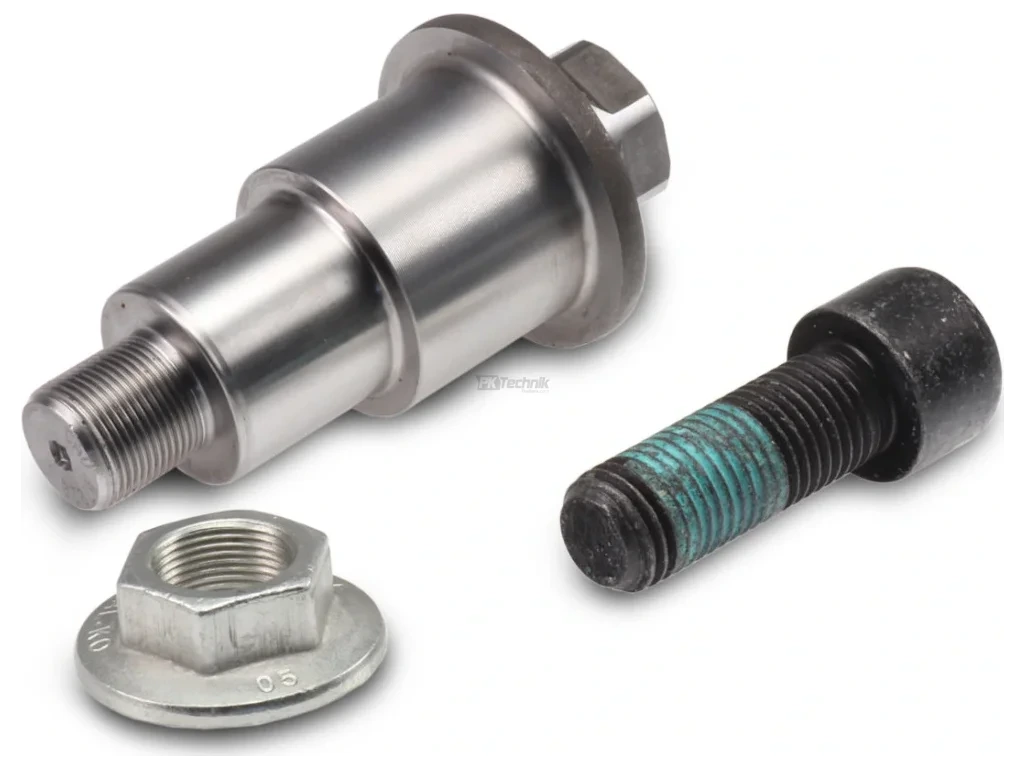

Included in the delivery is a locking bolt for the pin (Allen M22) and a central locking nut for the hub M24x1,5.
The prescribed tightening torque for mounting the pin in the axle arm is 640 Nm.
The prescribed tightening torque of the centre nut is 290 Nm.
Note: This pin is intended for the special axle AL-KO DELTA SIN14-1 marked on the ETI production plate with number 811942. It cannot be used for standard axles AL-KO with a 39 mm diameter pin.

Category:	Brake drum pins
EAN:	4251302407523
