Brake shoes for BPW S2005-5 RASK set for 2 wheels

Brake shoe set for wheel units BPW 2005-5 RASK (inner drum diameter 200 mm, shoe width 50 mm). This is an original set of brake shoes KNOTT intended for wheel brake units BPW 2005-5 RASK.

Companies BPW and KNOTT used the same wheel brake system and components at a certain time. Brake shoes KNOTT for wheel units 20-2425/1 (200x50) are identical to brake shoes for wheel units BPW 2005-5 RASK. ATTENTION!!! This compatibility does not apply to BPW/AL-KO wheel brake units with a different designation (e.g. wheel brake units BPW 2005-7 RASK have different shoes).

Axles BPW using wheel brake units BPW 2005-5 RASK have the following marking on the axle nameplate:
xx.xx.316.xxx or xx.xx.362.xxx (e.g. 46.21.316.659).

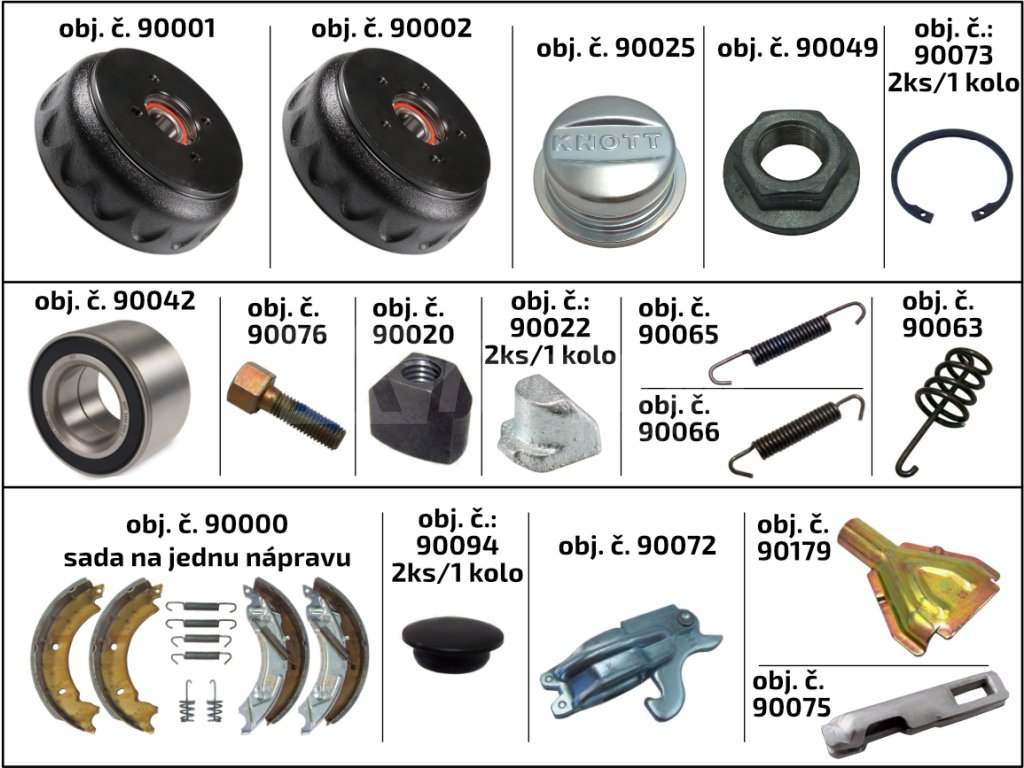

The set includes:

2 pcs leading jaw

2 pcs. running jaw including fitted automatic reversing mechanism with Backmat springs

2 pcs short tension spring

2 pcs long tension spring

2 pcs compression cone spring

This is a complete set of springs and calipers needed for two wheels.
