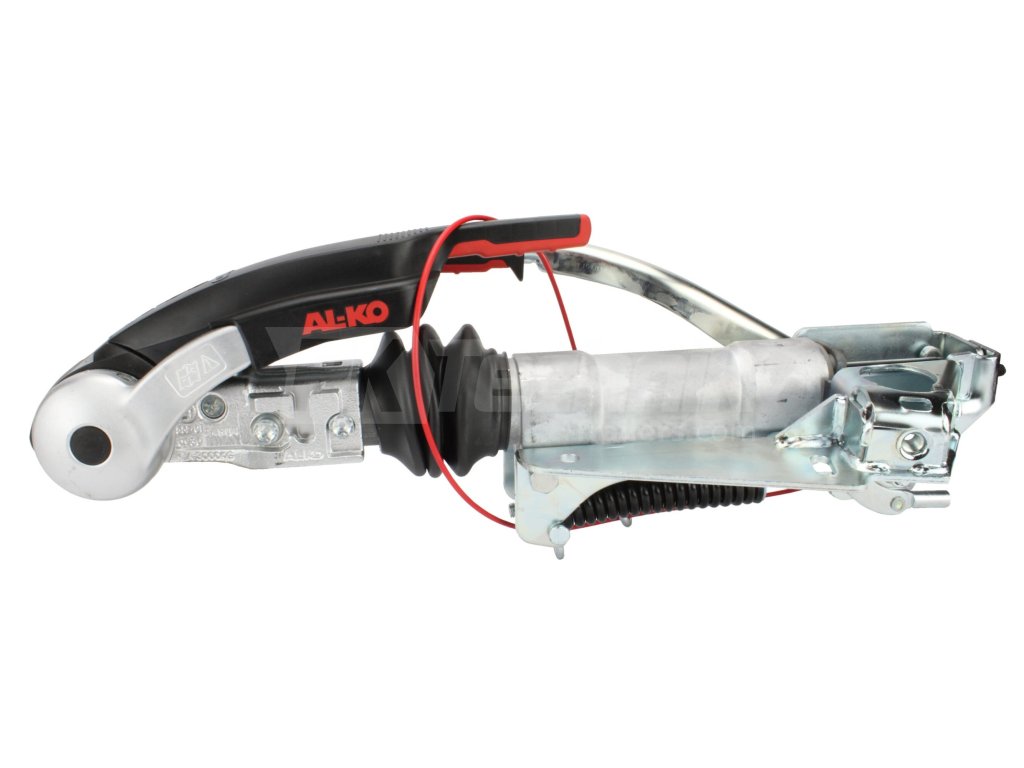

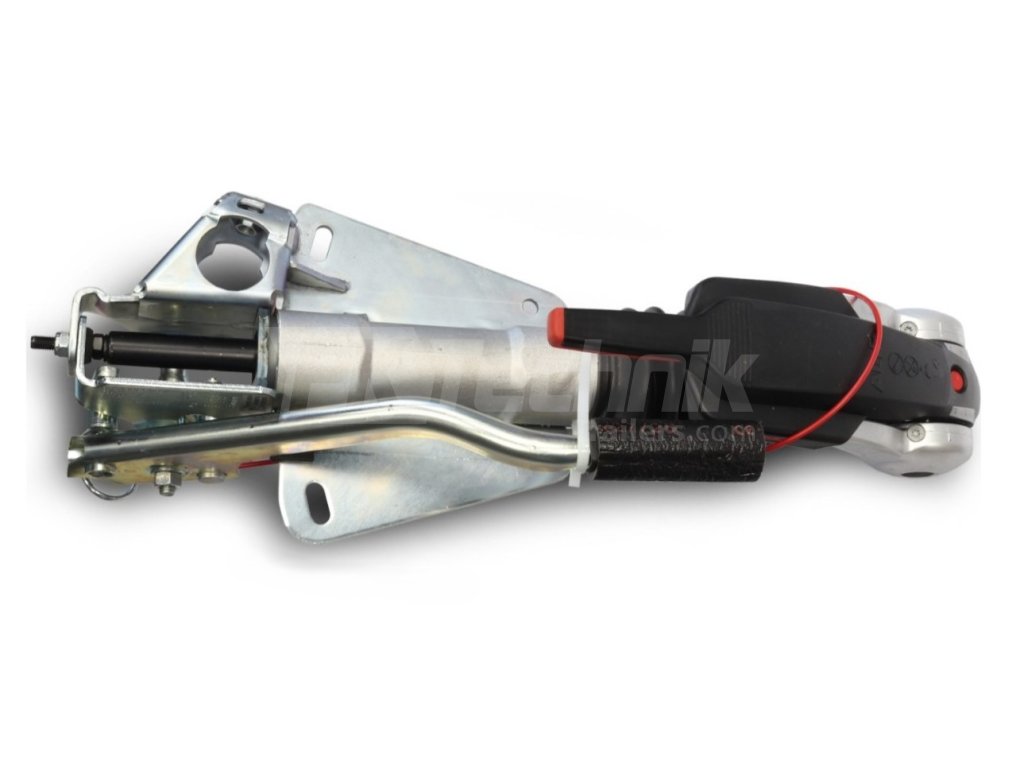

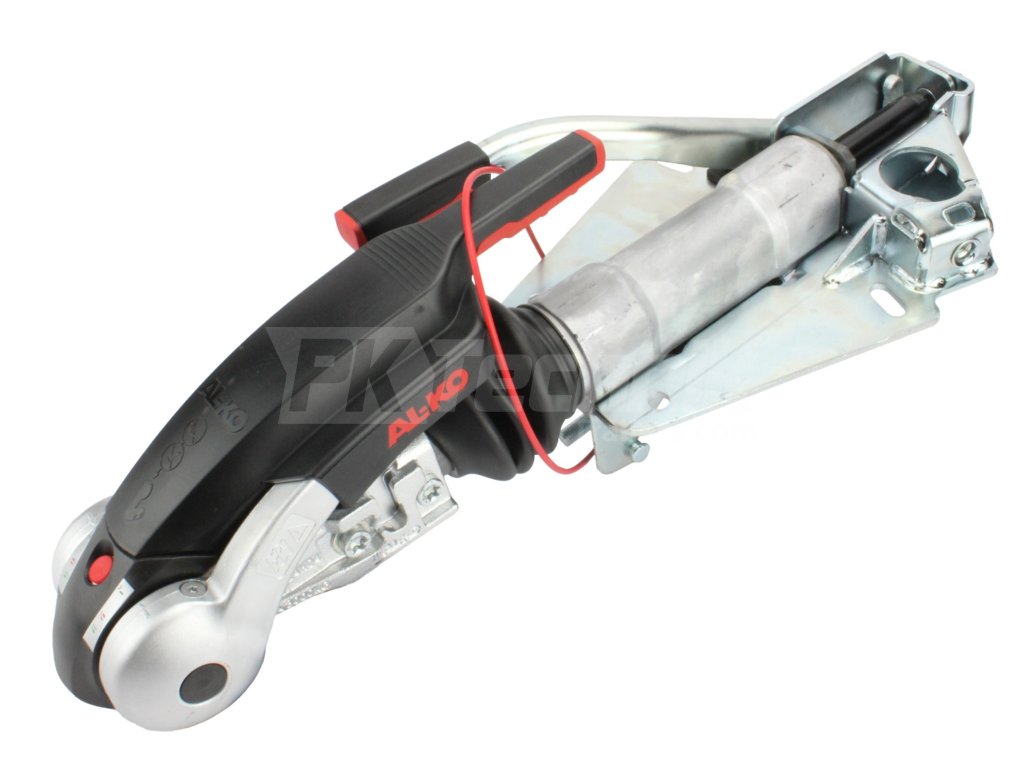

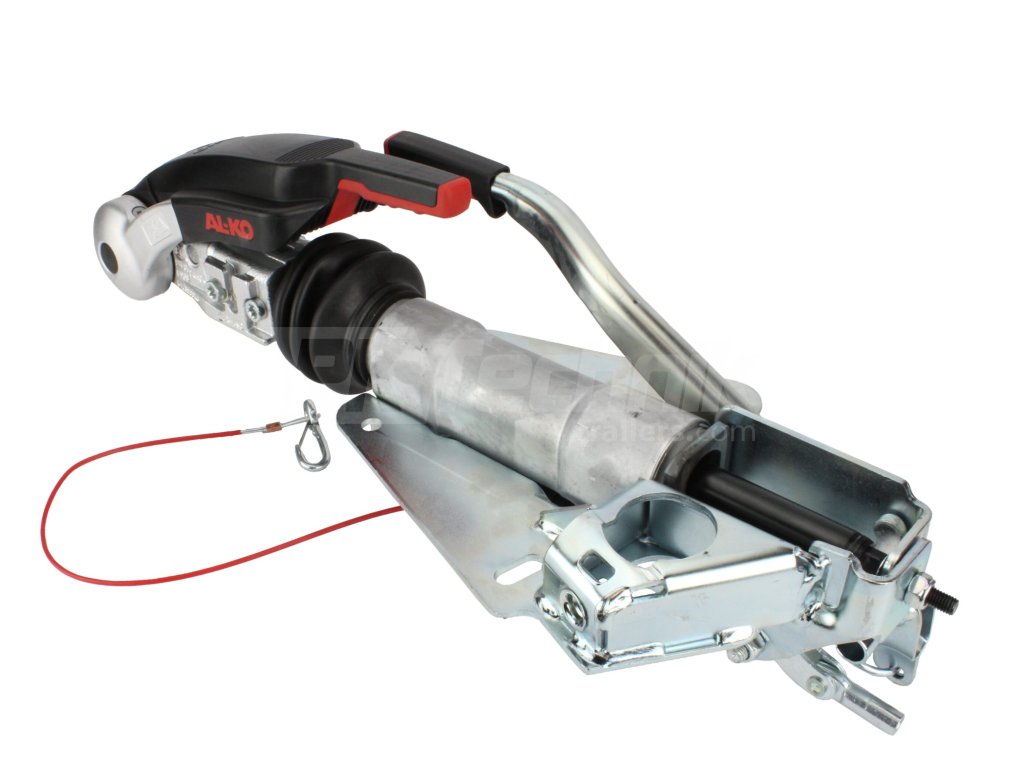

Overrun brake AL-KO 200V (for 1637/2051) with AKS 3004

Product detailed description

• Overrun brake AL-KO 200V (AE EURO-2 200V) 2nd generation for trailers equipped with wheel units AL-KO 1637 (inner drum diameter 160 mm) and AL-KO 2051 (inner drum diameter 200 mm) with automatic reversing
• Designed for trailers with maximum permissible weight from 1300 kg to 2000 kg
• The brake is equipped with an integrated 48 mm diameter support wheel holder on the left side
• The coupling for connection to the central brake rod has an M10 thread
• Rear oval mounting holes allow V-brakes to be fitted with arm angles from 22 to 34 degrees, front mounting holes 120 mm apart
• This ramp brake is often used on caravans in combination with the plastic cover Order No. 101904 (not included)

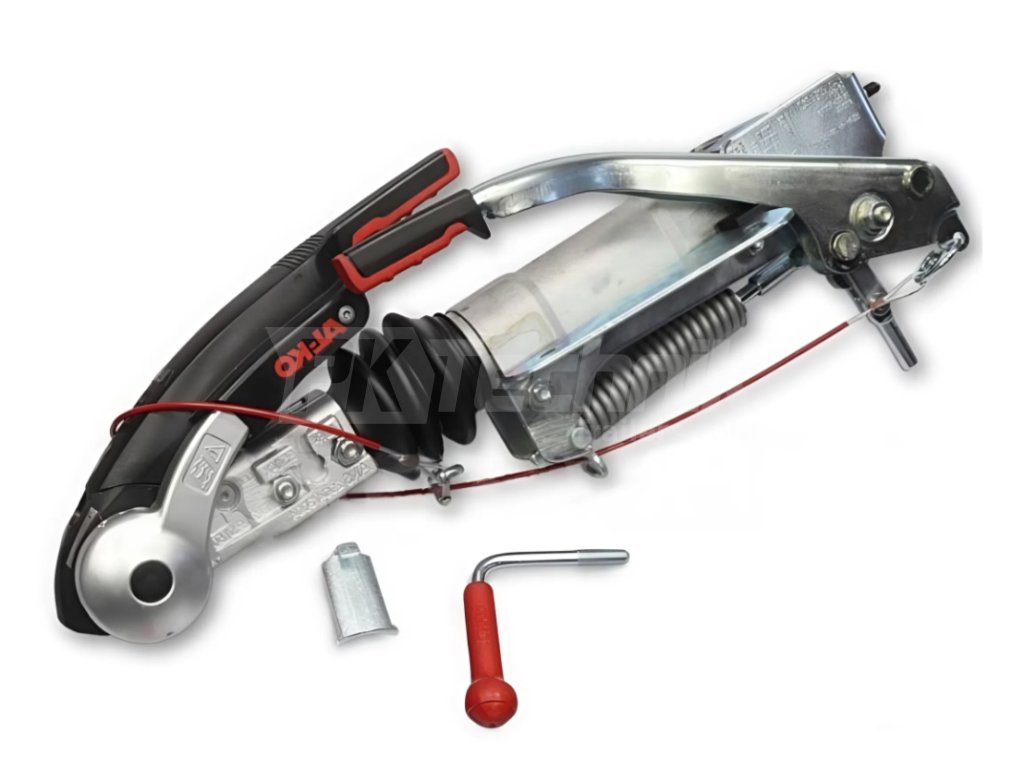

• The brake is supplied with a AL-KO AKS 3004 stabilizer, a handle and a pressure segment for the support wheel holder.
• NOTE: The gear ratio of the overrun brake is fixed at 90:27 (for wheel units AL-KO 1636G, 1637 and 2051) and cannot be changed for other wheel units, e.g. 2361. For larger wheeled units, a brake version with a 90:30 or 90:33.5 overrun ratio must be ordered.
