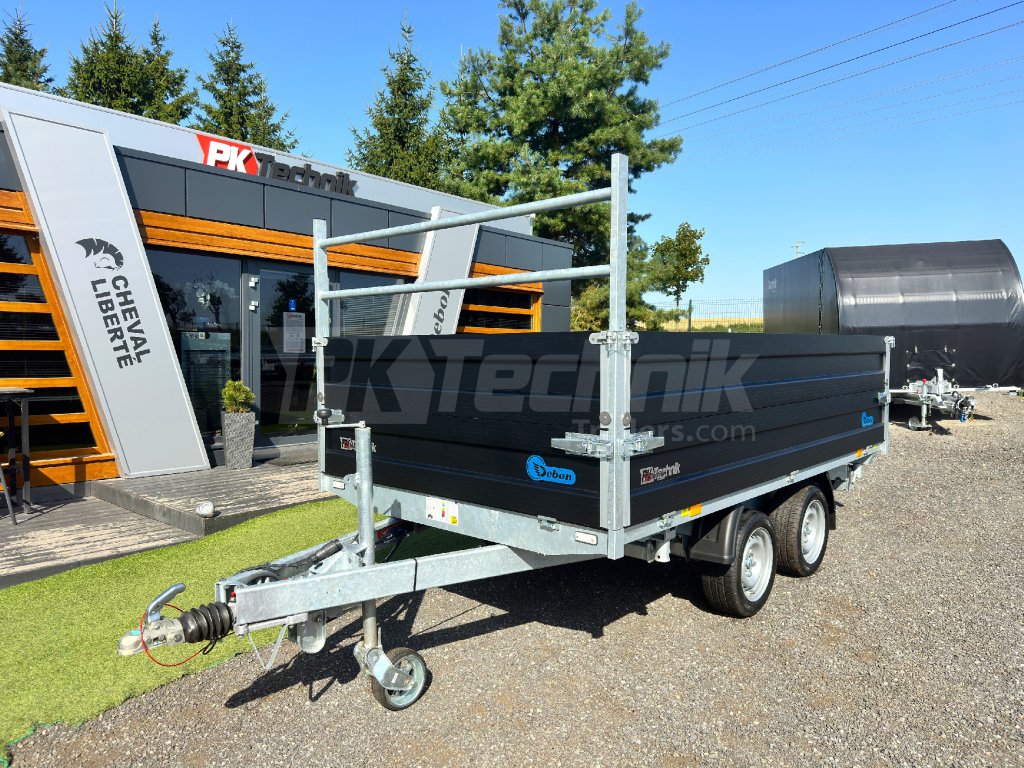

Sklápěcí přívěs DEBON PW 3.3®, 2x ALU bočnice (700 mm), 330x180x35, 805 kg, 3500 kg
Code: DEBON PW 3.3 ALURelated products
Code: CZ001033_1005180
Code: 102258_101768PK_101443
Product detailed description

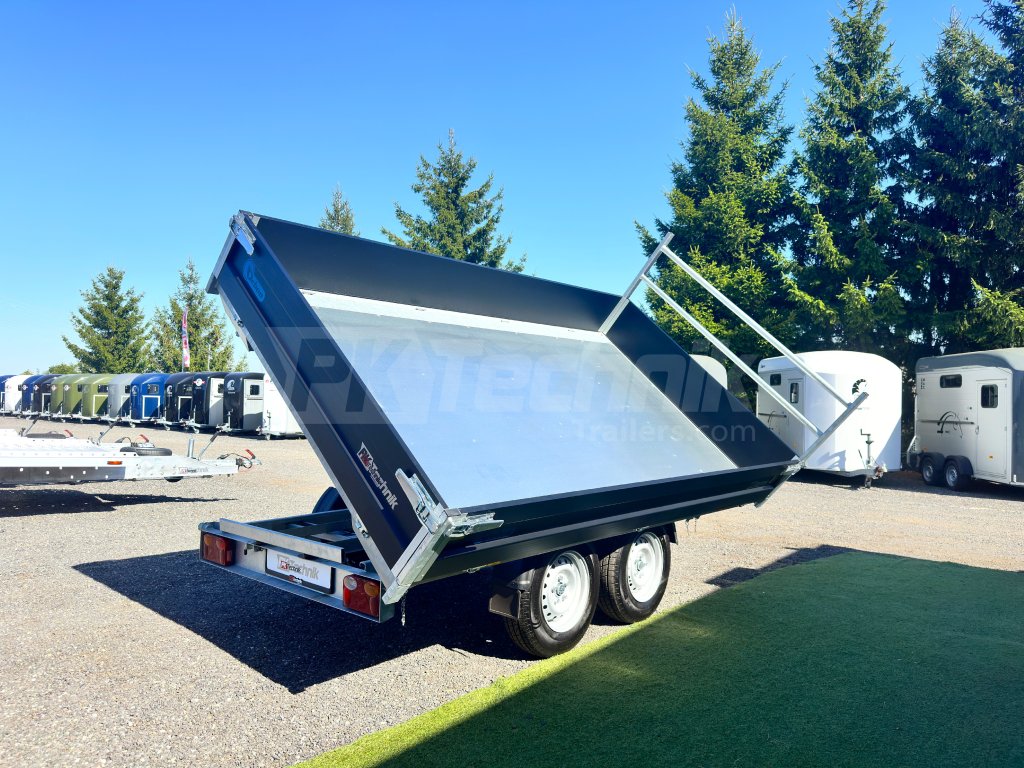

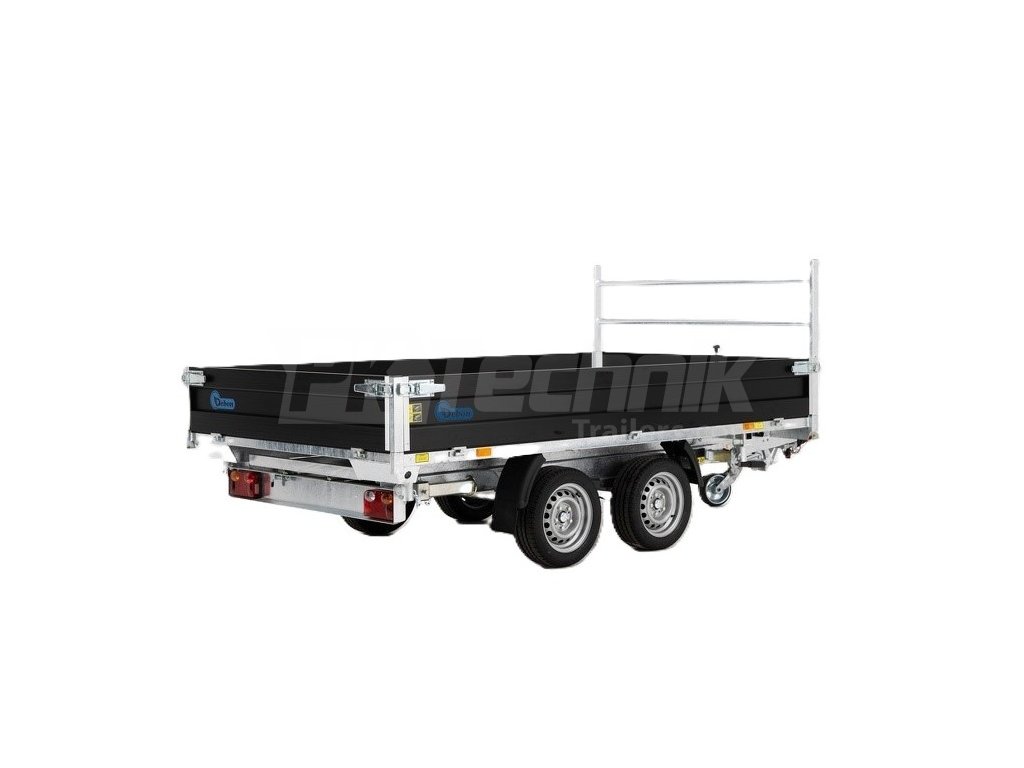

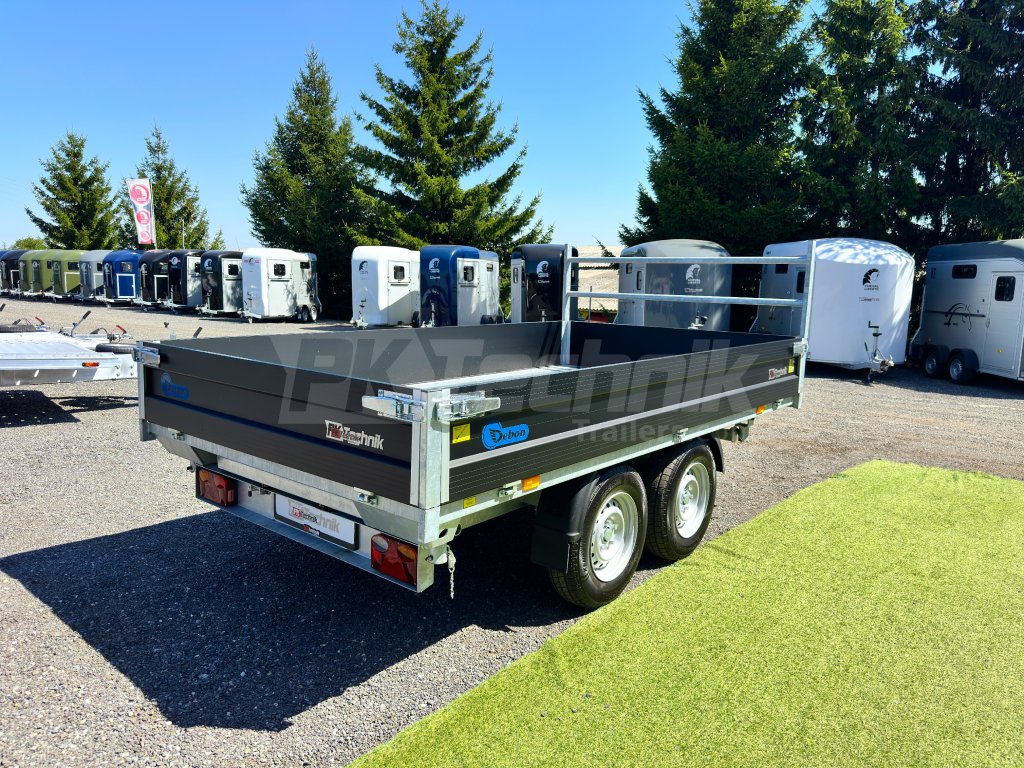

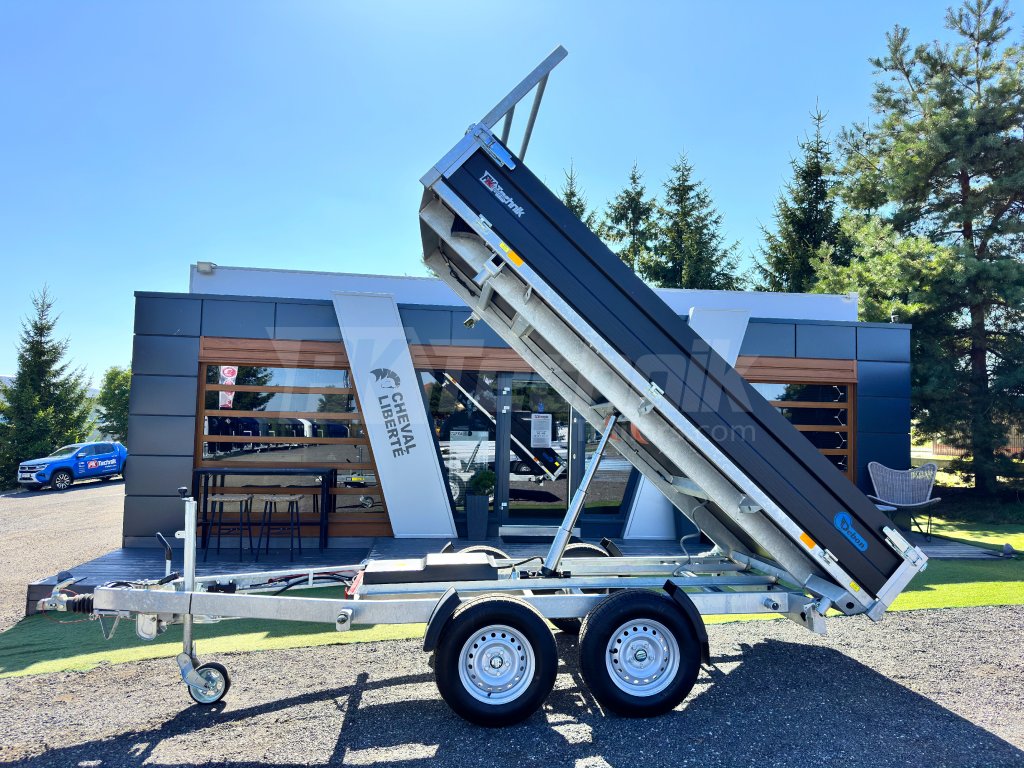

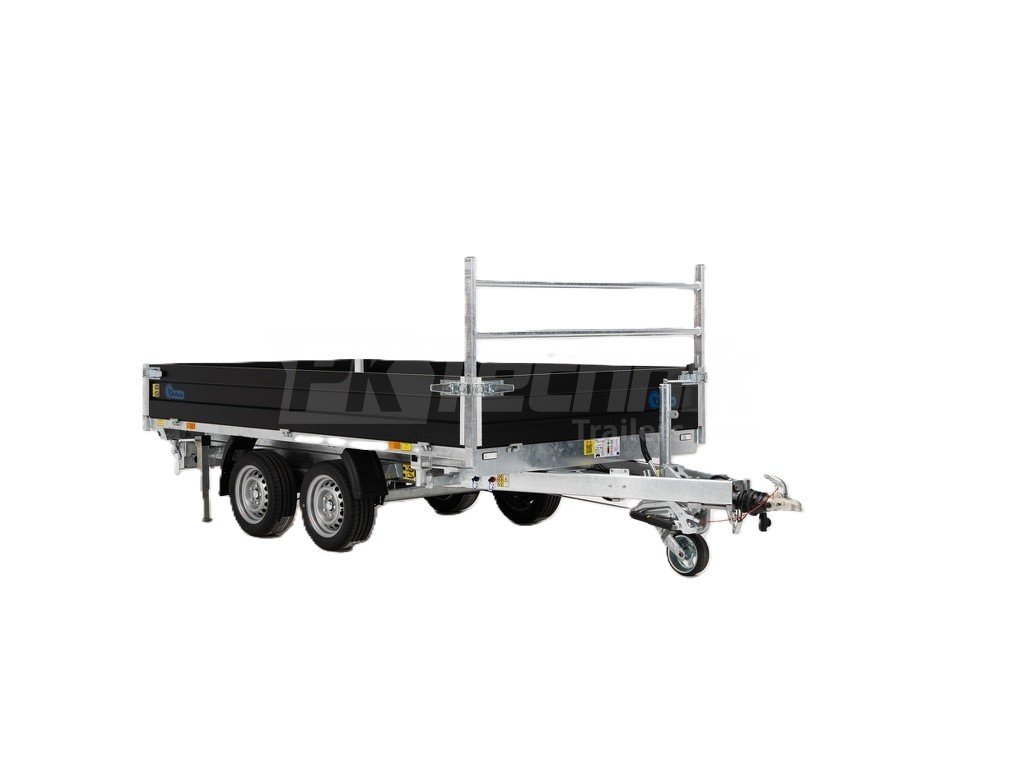

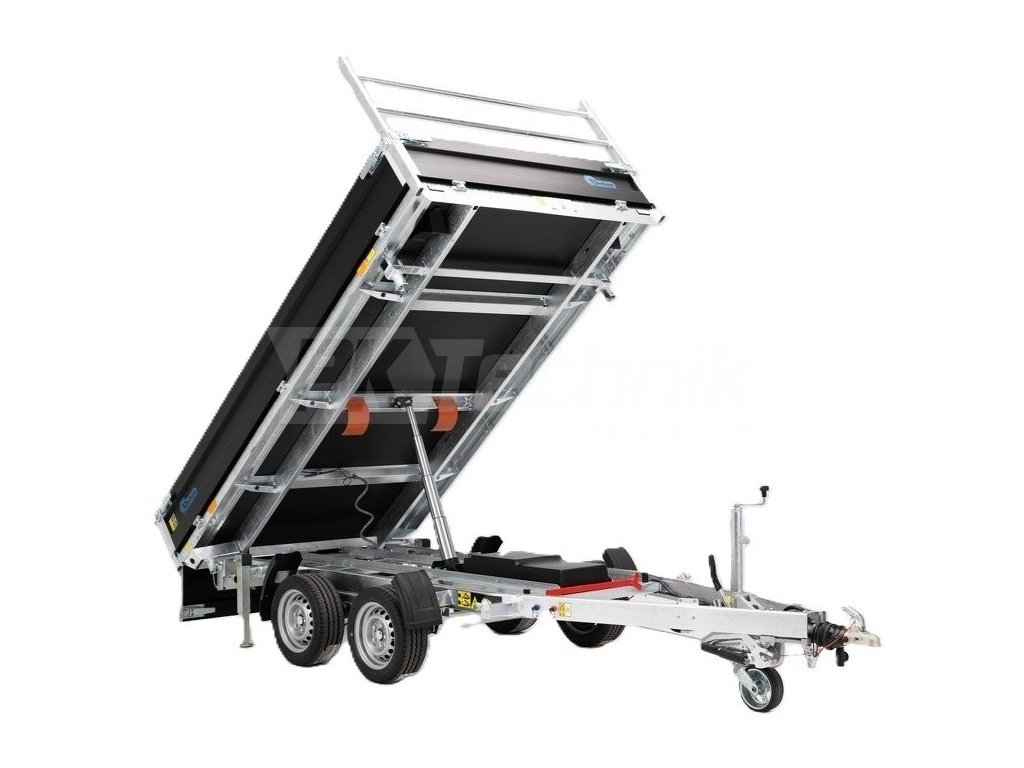

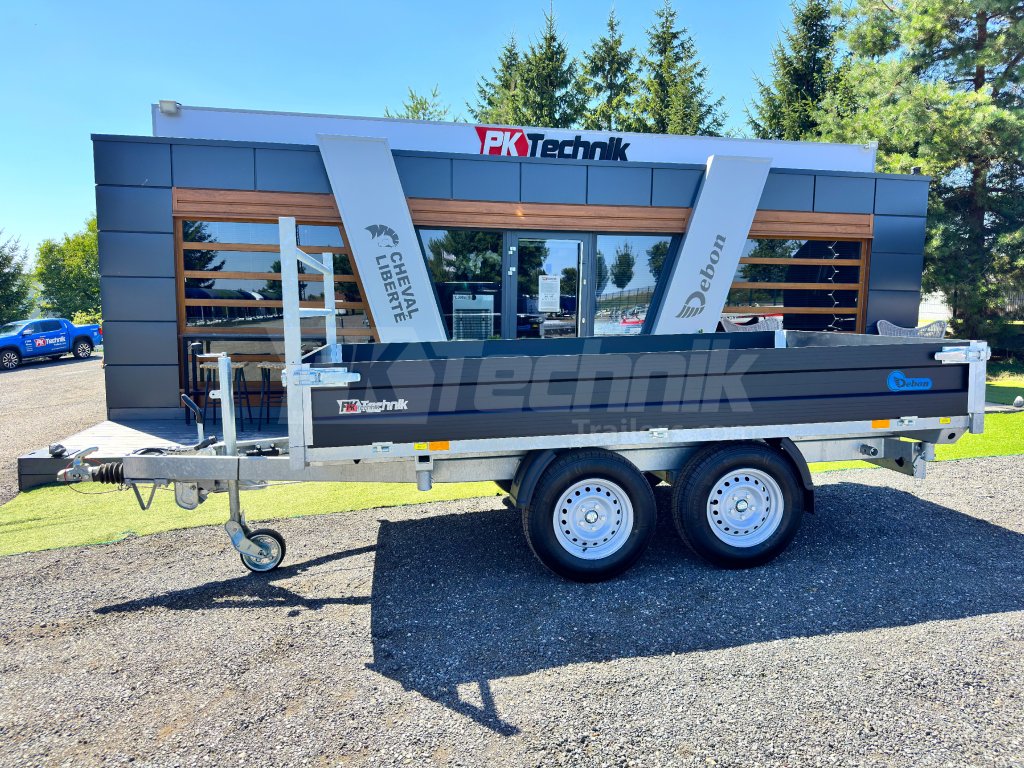

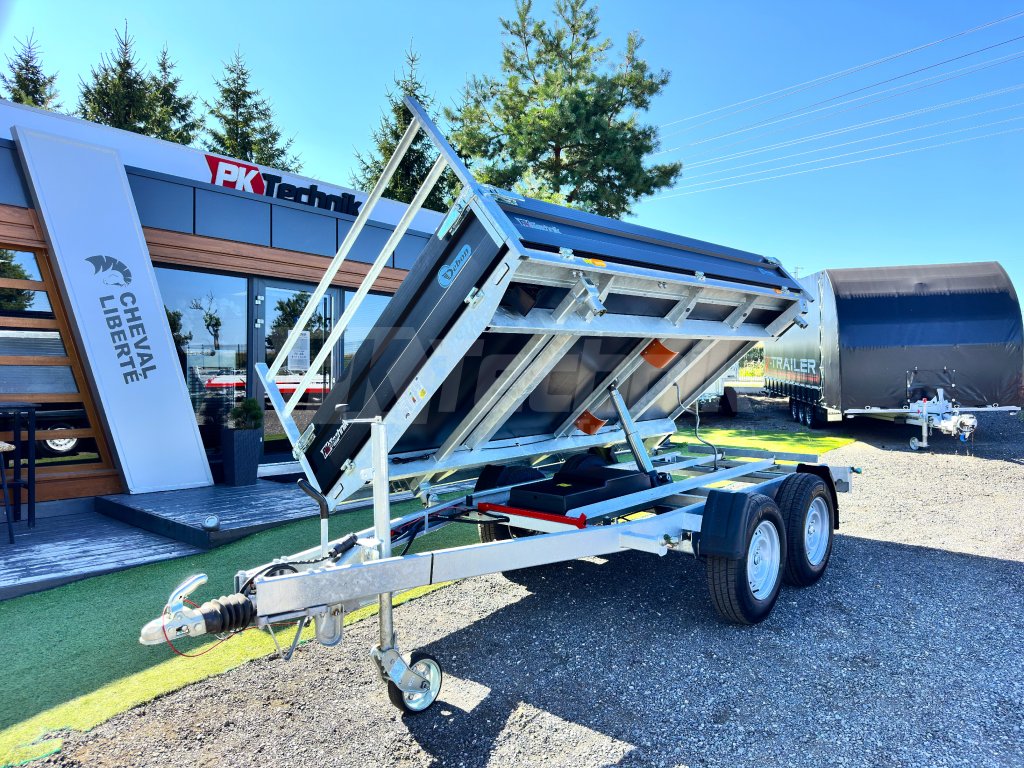

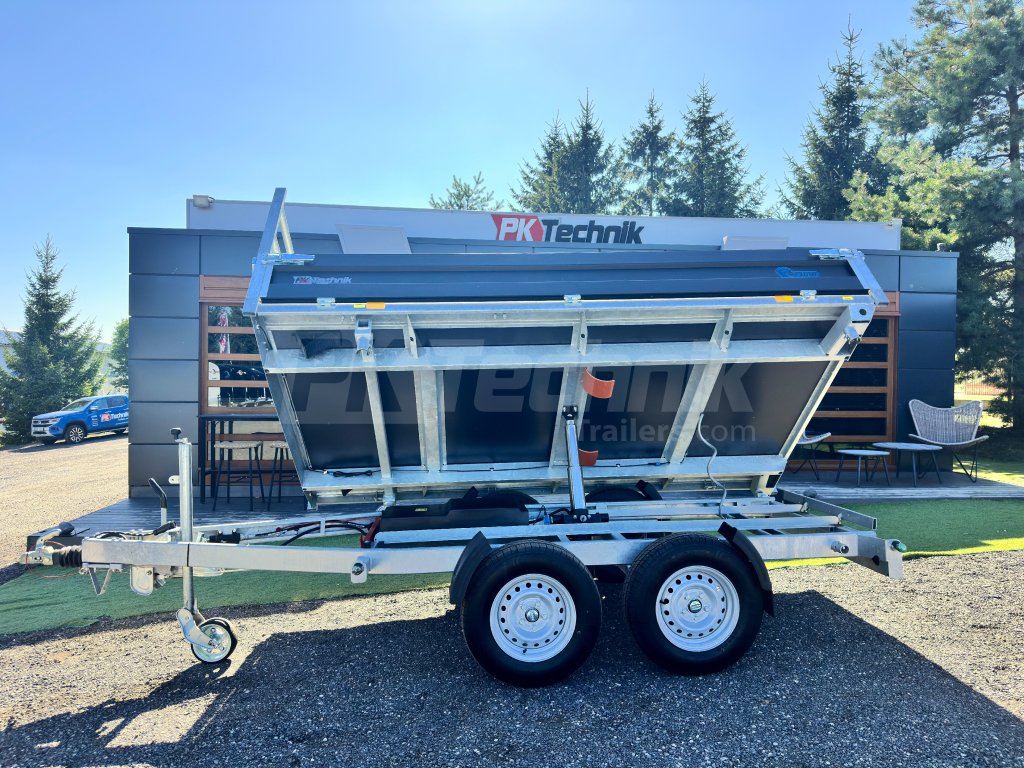

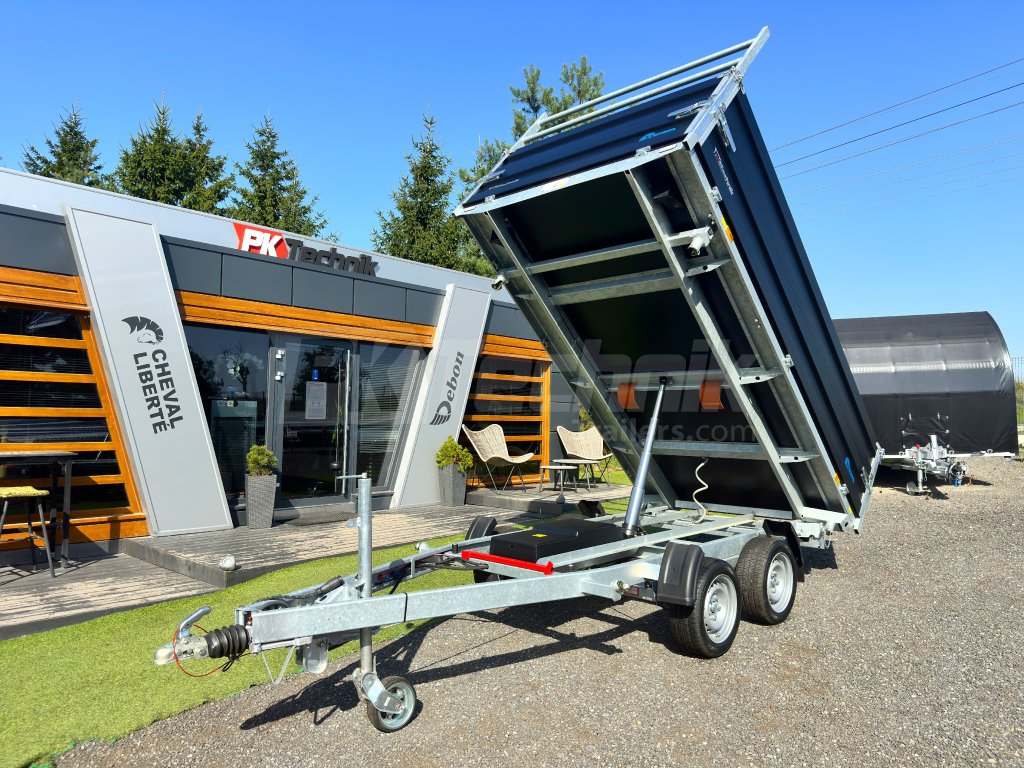

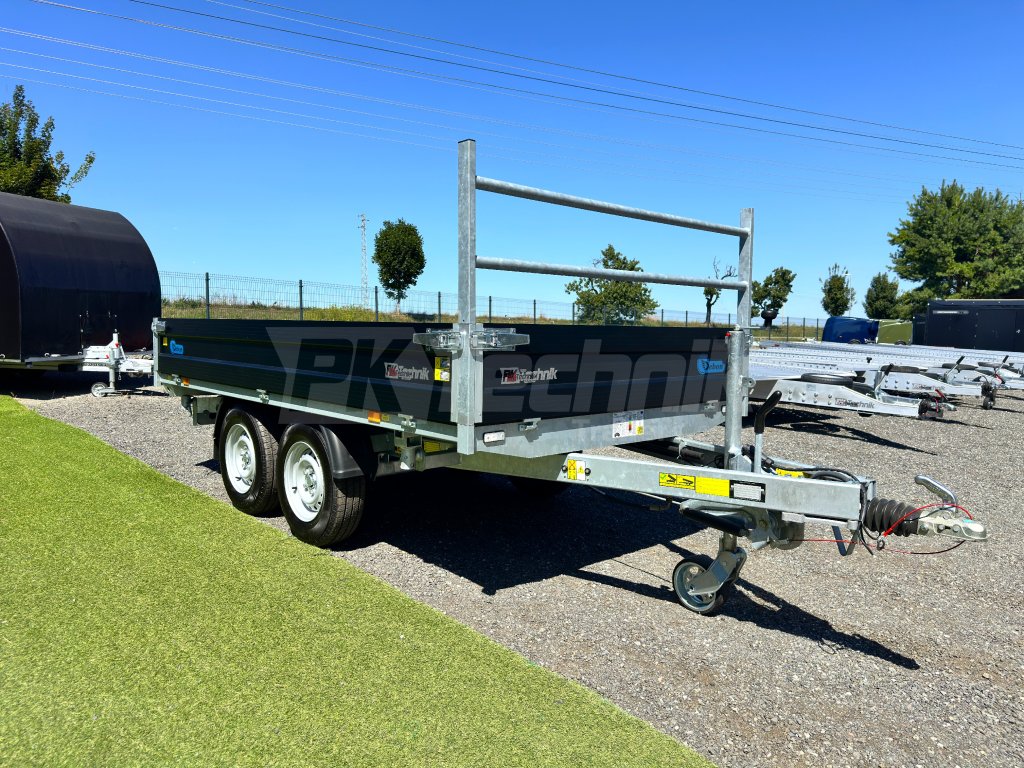

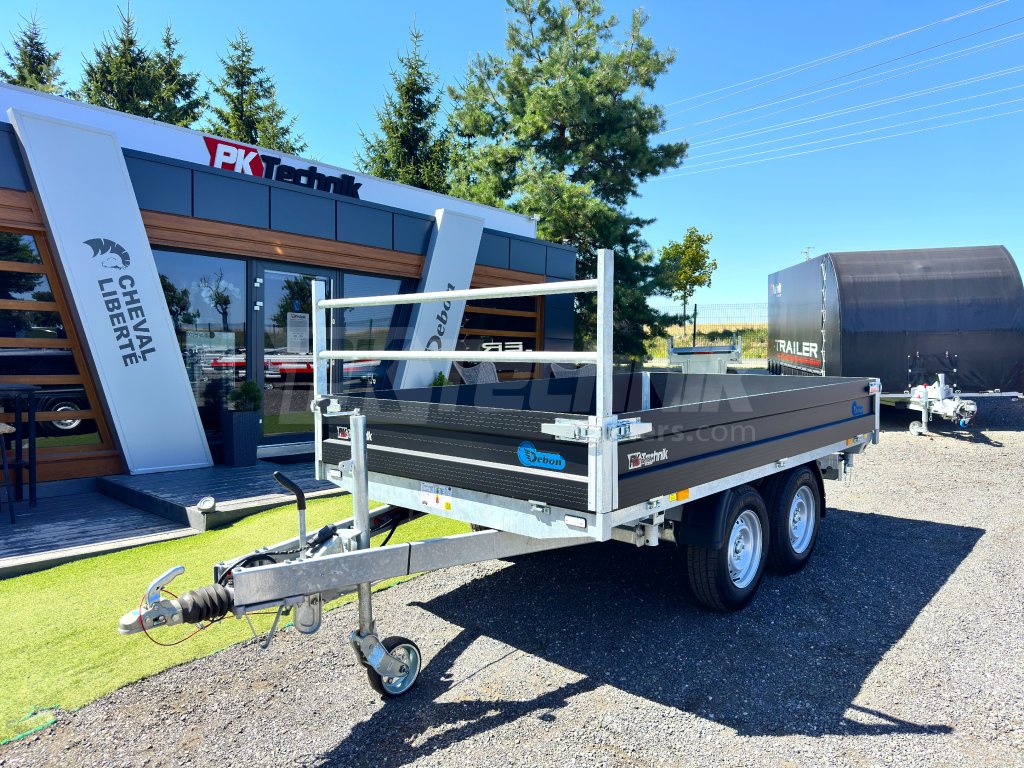

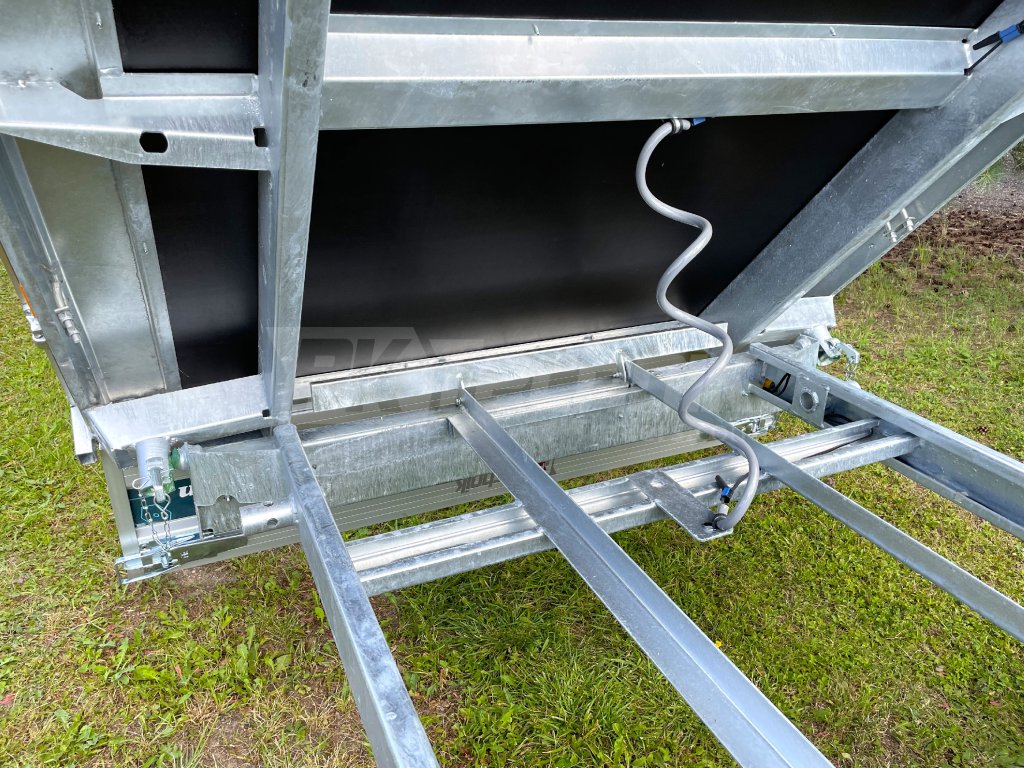

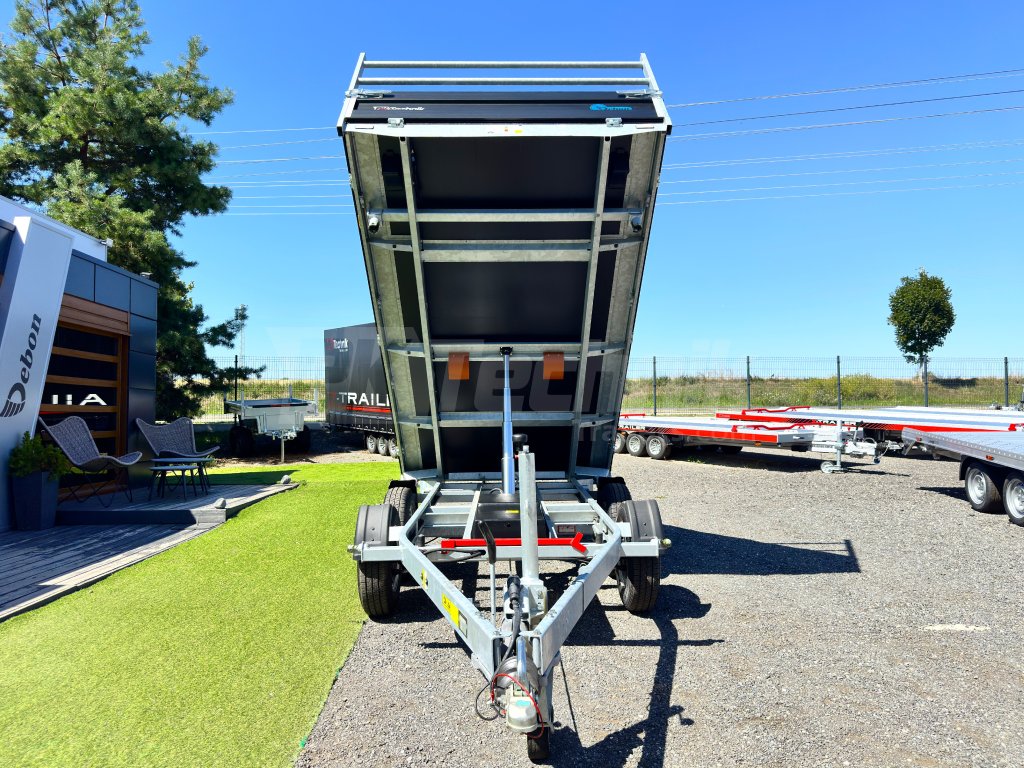

The electrohydraulic folding flatbed trailer DEBON PW 3. 3 from the renowned French company Cheval Liberte - Debon is characterized by universal use and high durabilitythanks to the use of the most modern technologies in production. It is equipped with a built-in accumulator for independent tipping of the superstructure without the need to connect the trailer to a power source, and this model, the Debon PW 3.3, is also equipped with a manual (hand) pump, for possible "emergency" lifting of the load compartment, the superstructure. The trailer is constructed on a galvanized steel frame, which is manufactured using the most modern CNC machines, fitted with axles from the German company KNOTT, black removable side panels made of anodized EUROLOCK aluminum profiles, which can be completely dismantled from all sides, including the posts, to create a flat platform for transporting various loads.
The floor of the trailer loading area is protected by galvanised sheet metal for even longer life and overall durability. As standard, 8 anchor shackles are installed in the loading area to secure the load being transported. The trailer is very suitable for transporting various materials, including bulk materials, or construction or garden machinery such as excavators, tractors, ATVs, etc. .
Technical parameters DEBON PW 3.3
- Total weight: 3500 kg
- Operating weight: 805 kg
- Load capacity: 2695 kg
- Writeable weight: 2700 - 3500 kg
- Folding: electric + manual

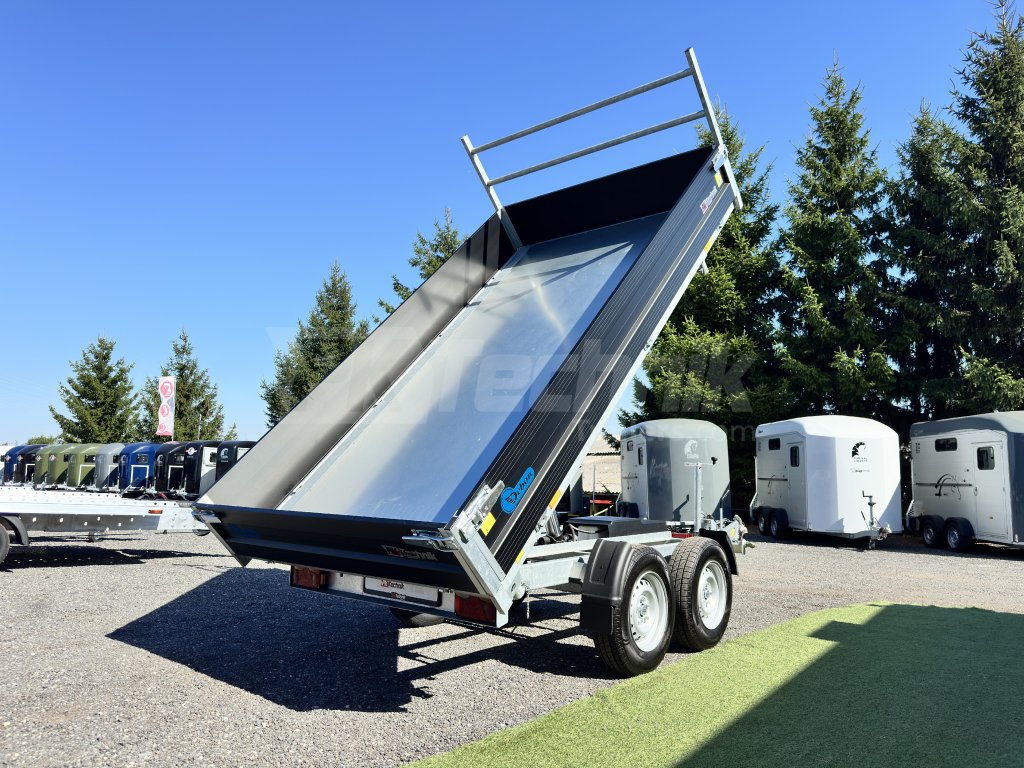

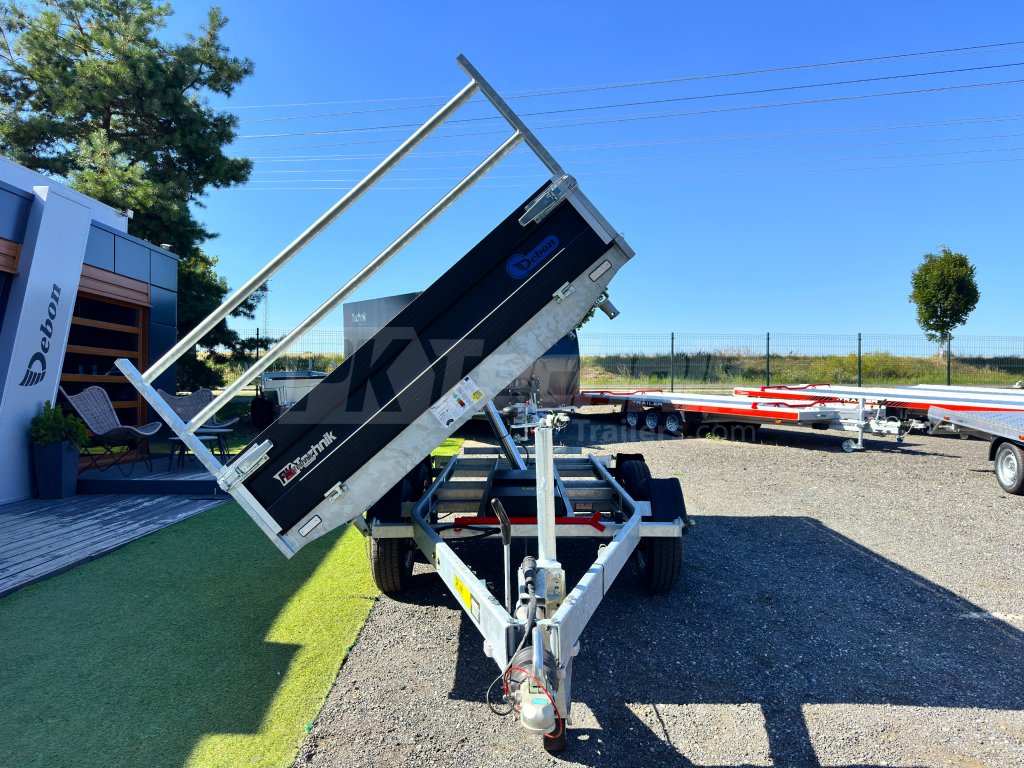

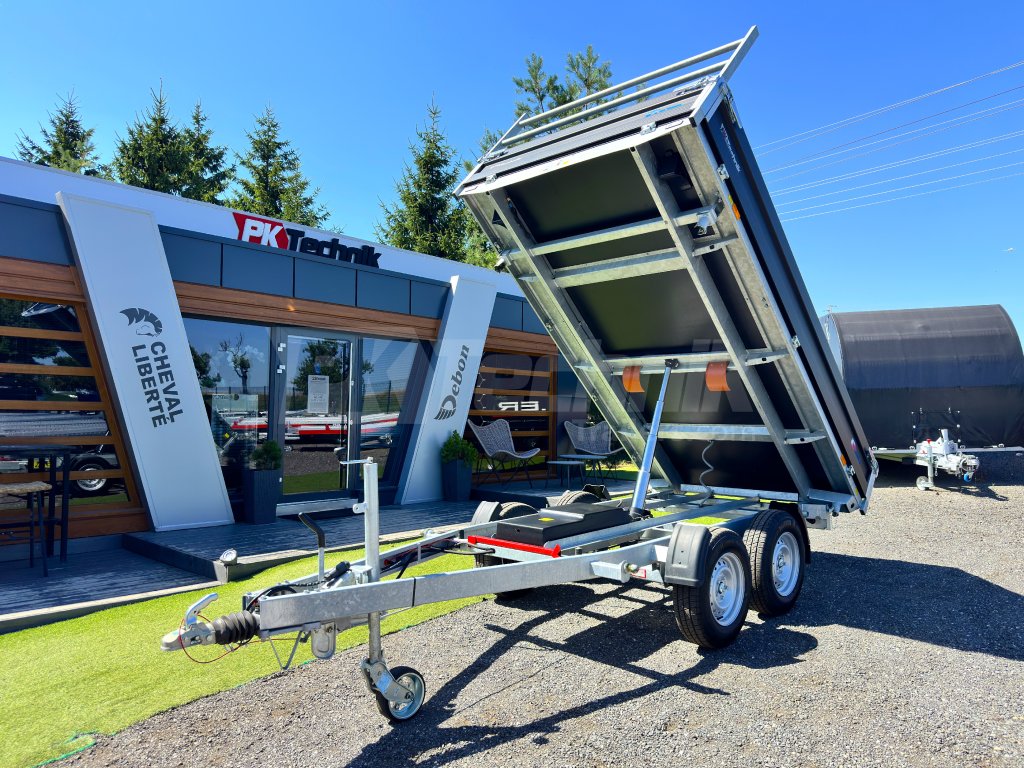

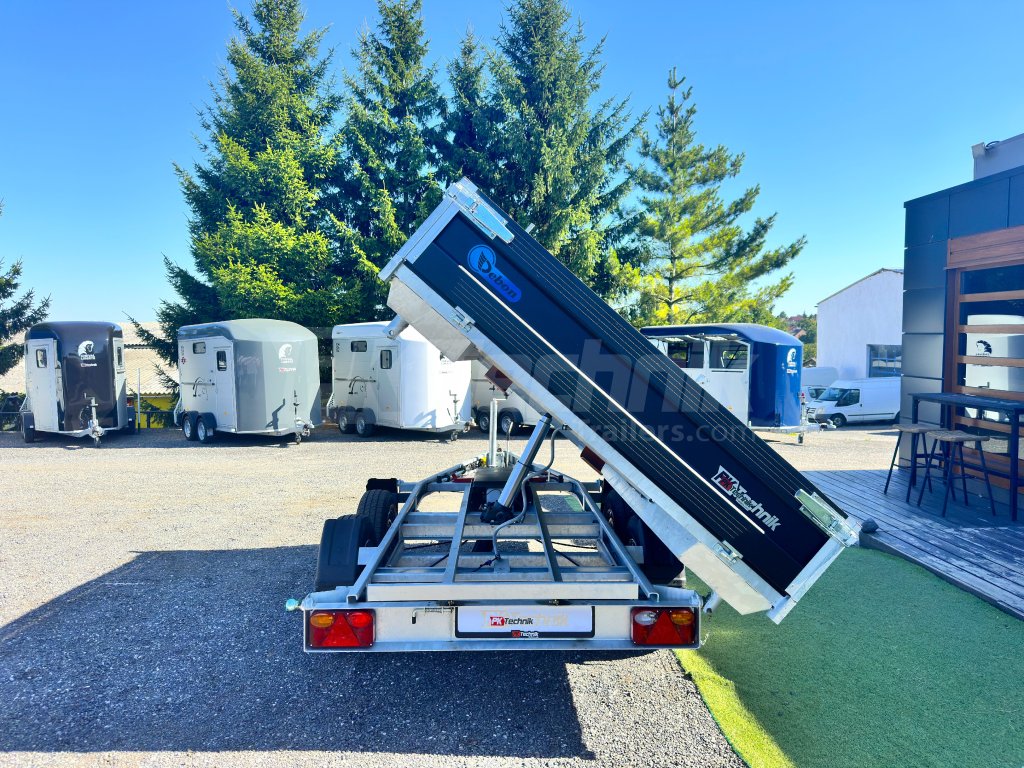

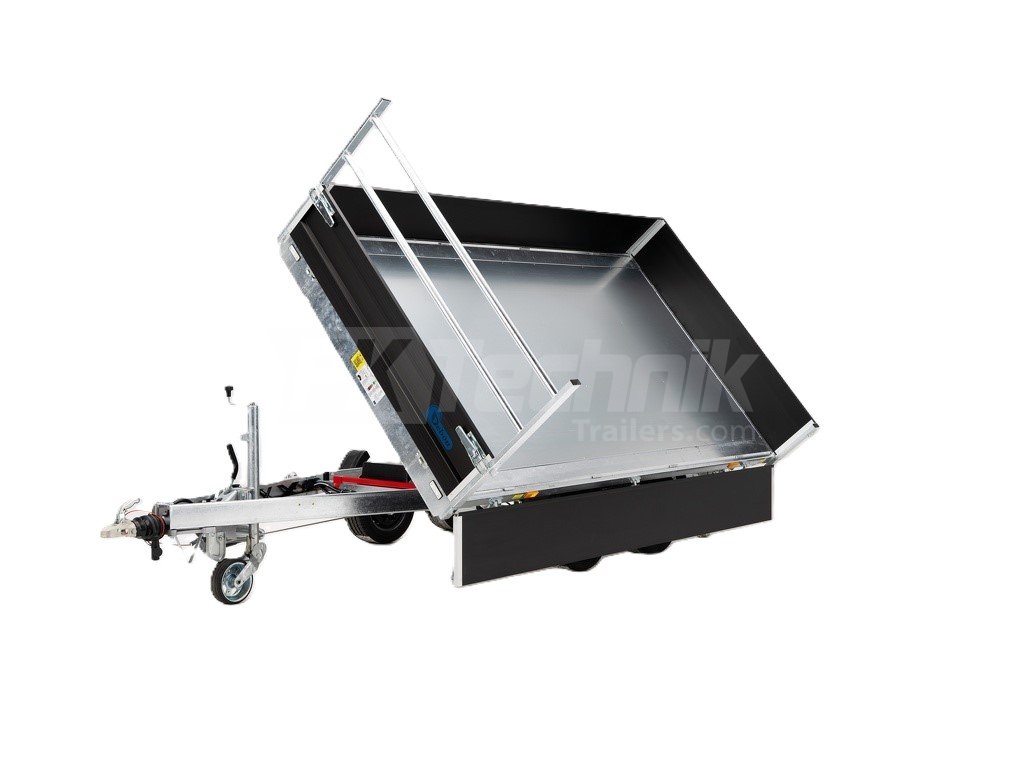

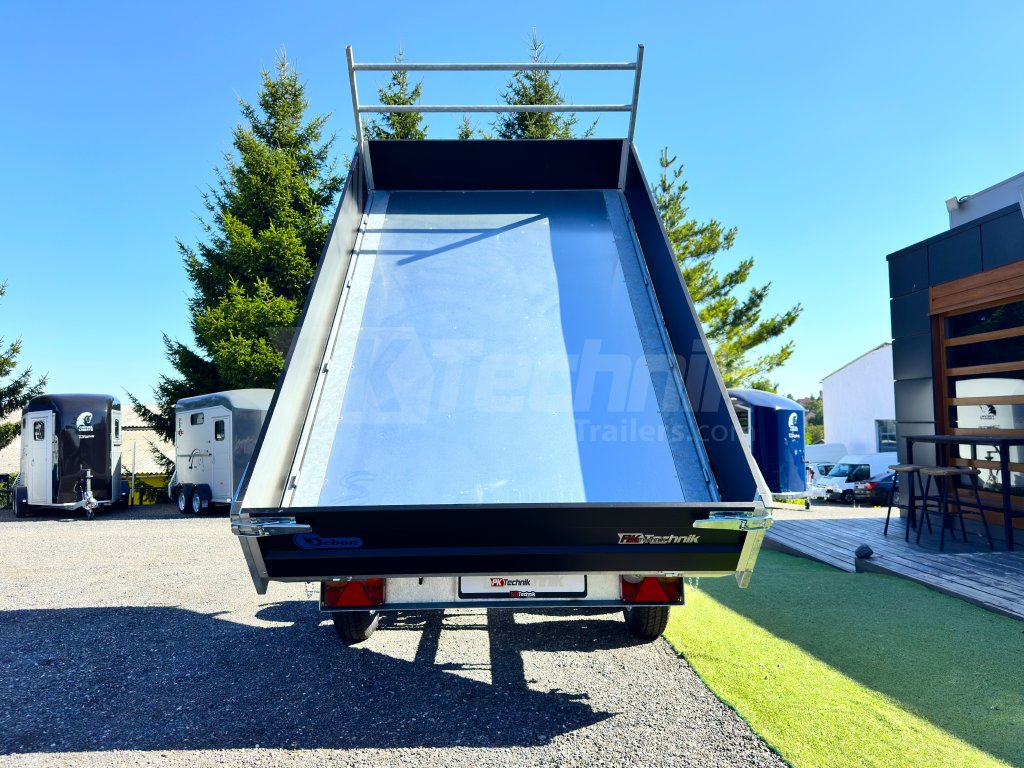

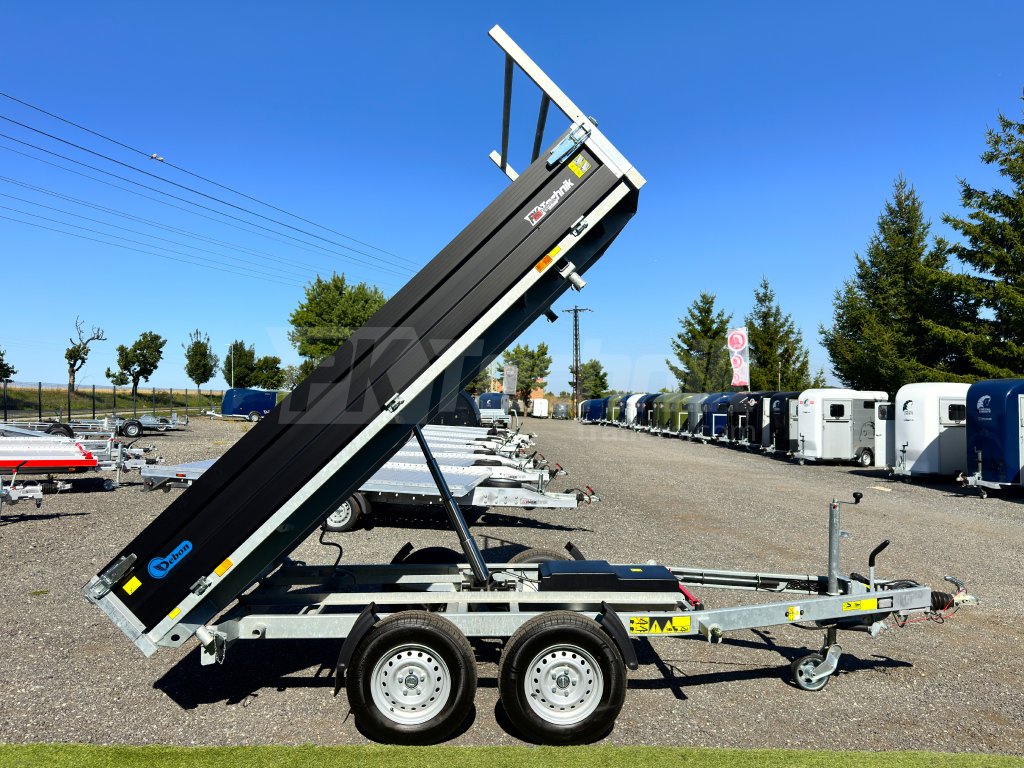

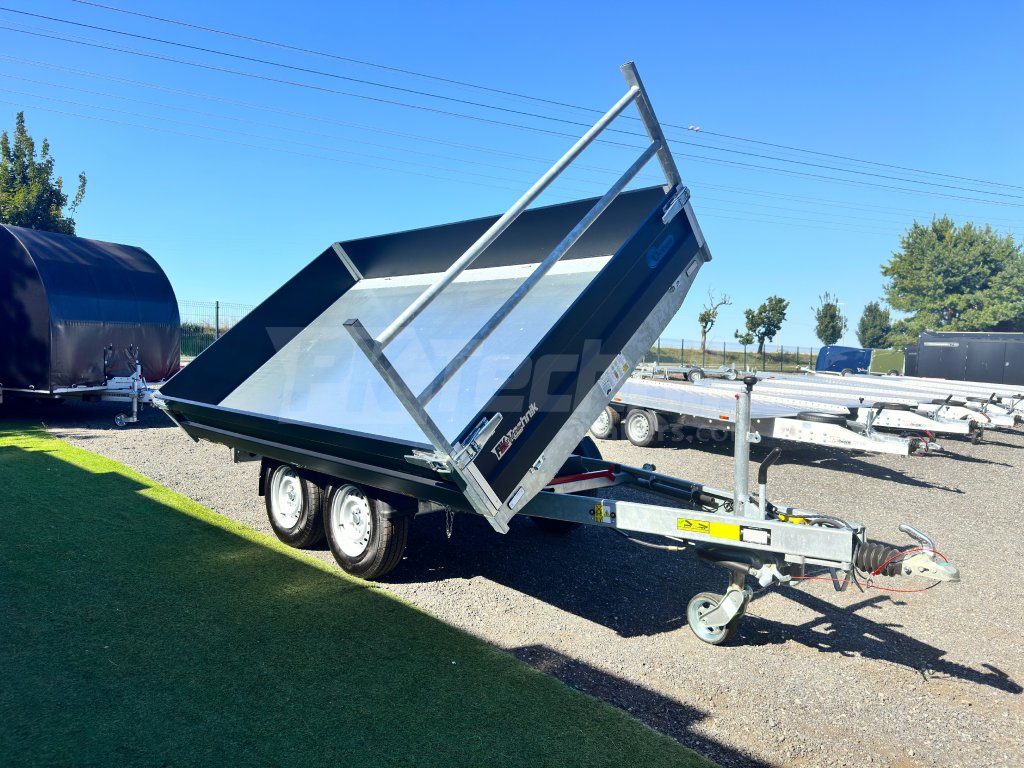

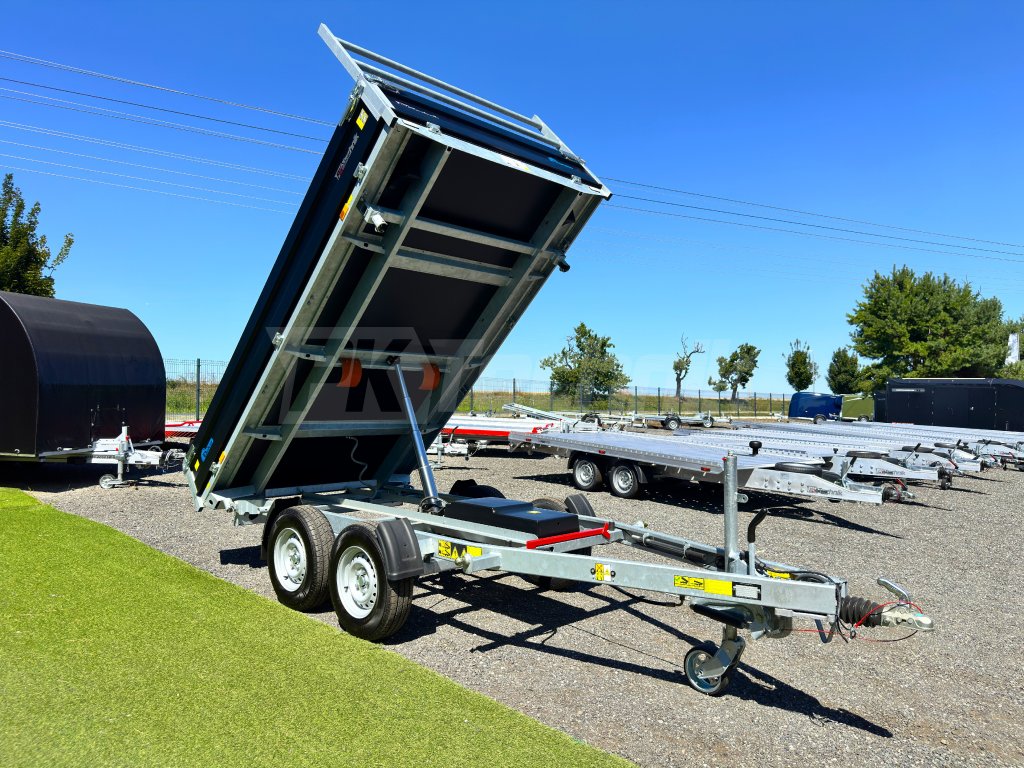

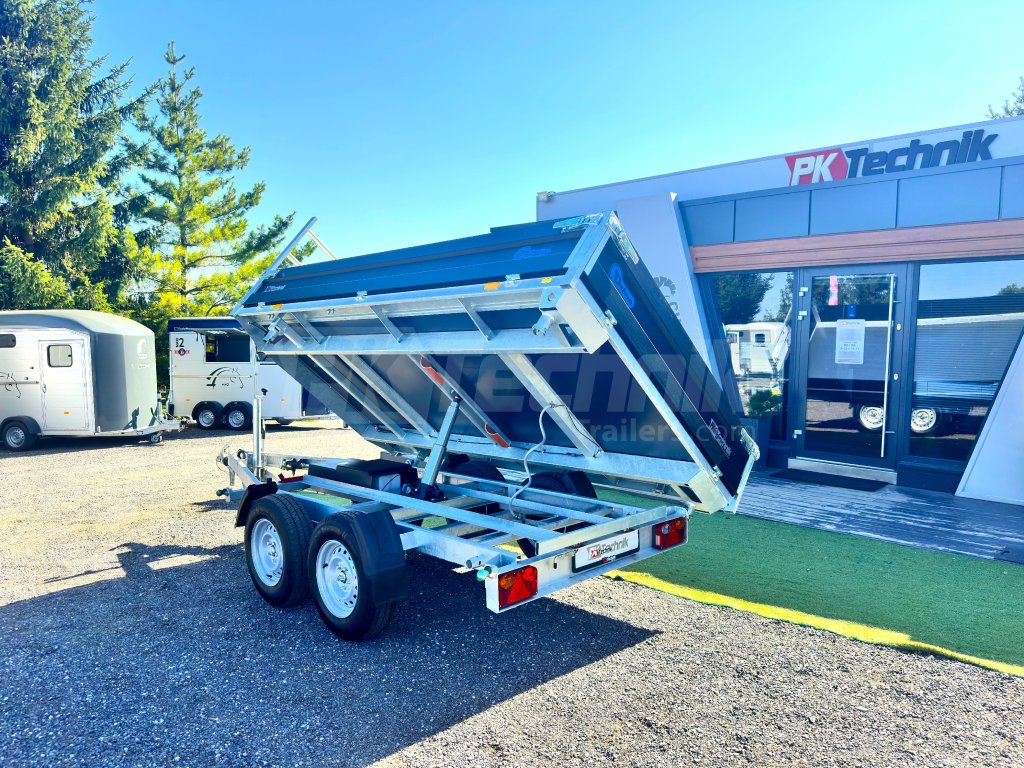

- Folding: three-sided (L/P/V)
- Length of bedding area: 330 cm
- Bed width: 180 cm
- Height of base sides: 35 cm
- Loading height: 67 cm
- Total length: 467 cm
- Total width: 192 cm
- Total height: 163 cm
- Side panels: EUROLOCK aluminum
- Axles: 2 x 1800 kg, KNOTT
- Pneu: 195/50 R13C / 185 R14C
- Speed: 140 km/h
- Brakes: braked
- Warranty: 2 years
Debon PW 3.3 trailer equipment

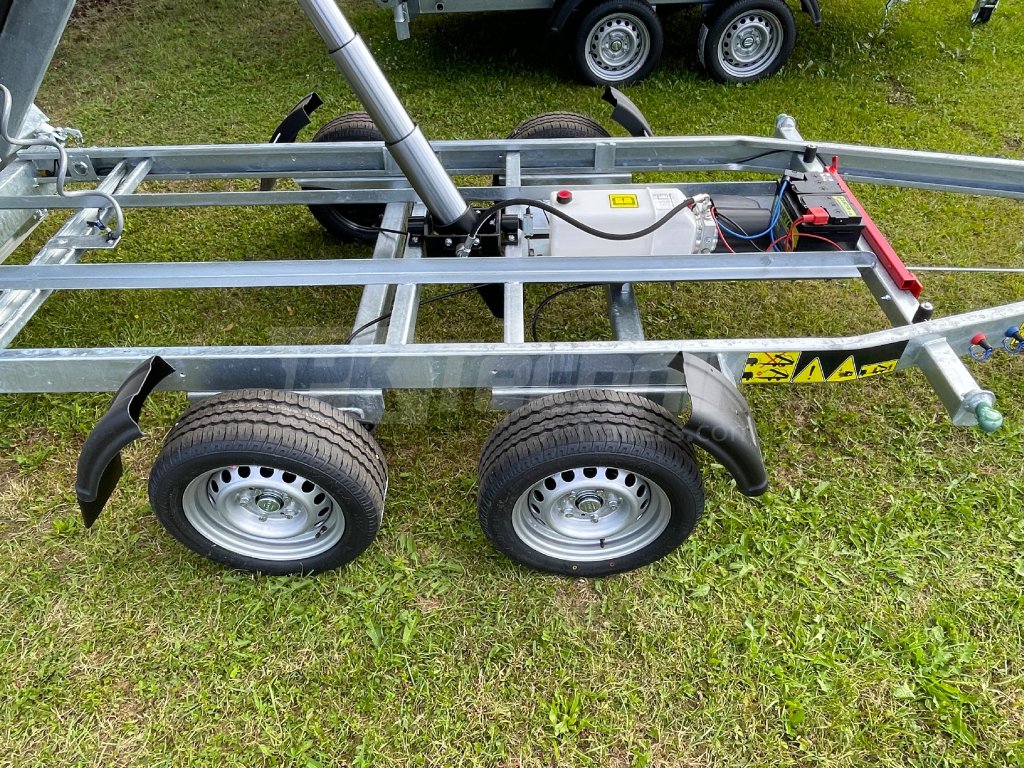

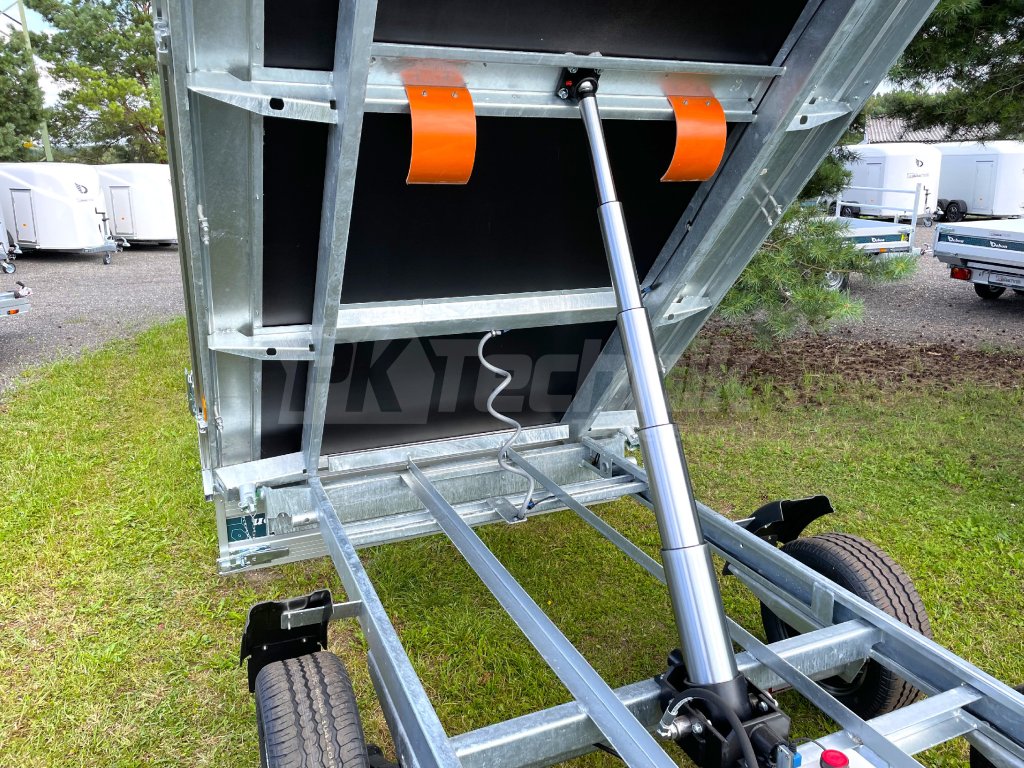

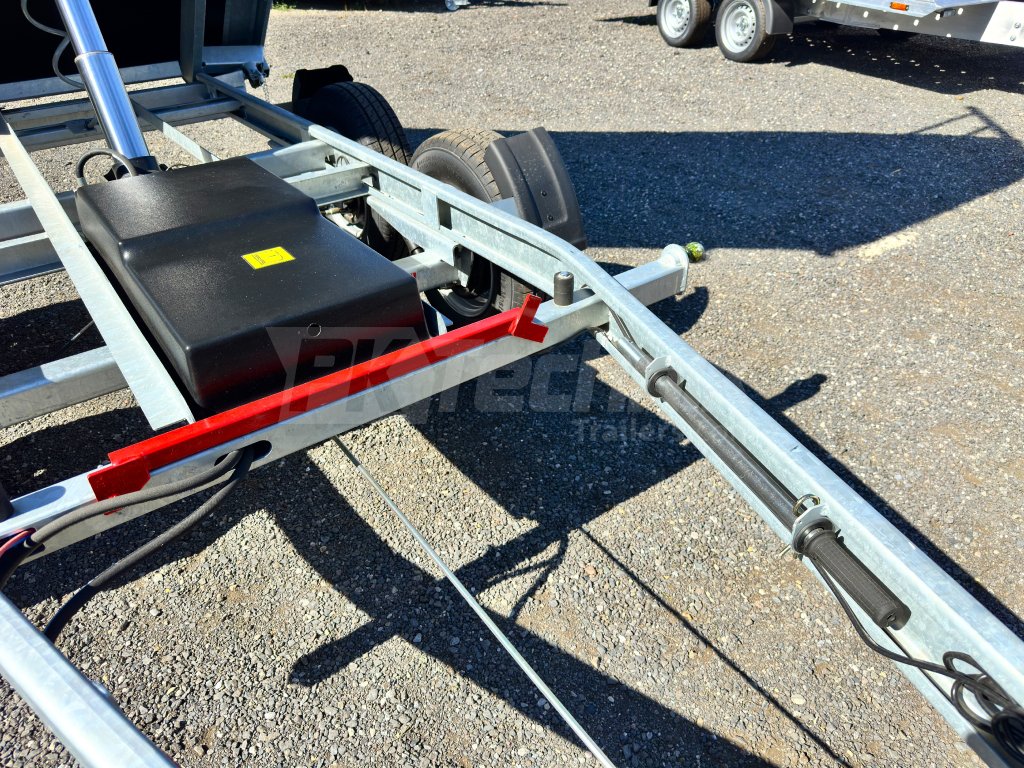

- Electrohydraulic MEILLER
- Additional manual MEILLER
- Pump 12V,1.6 kw, 200 bar

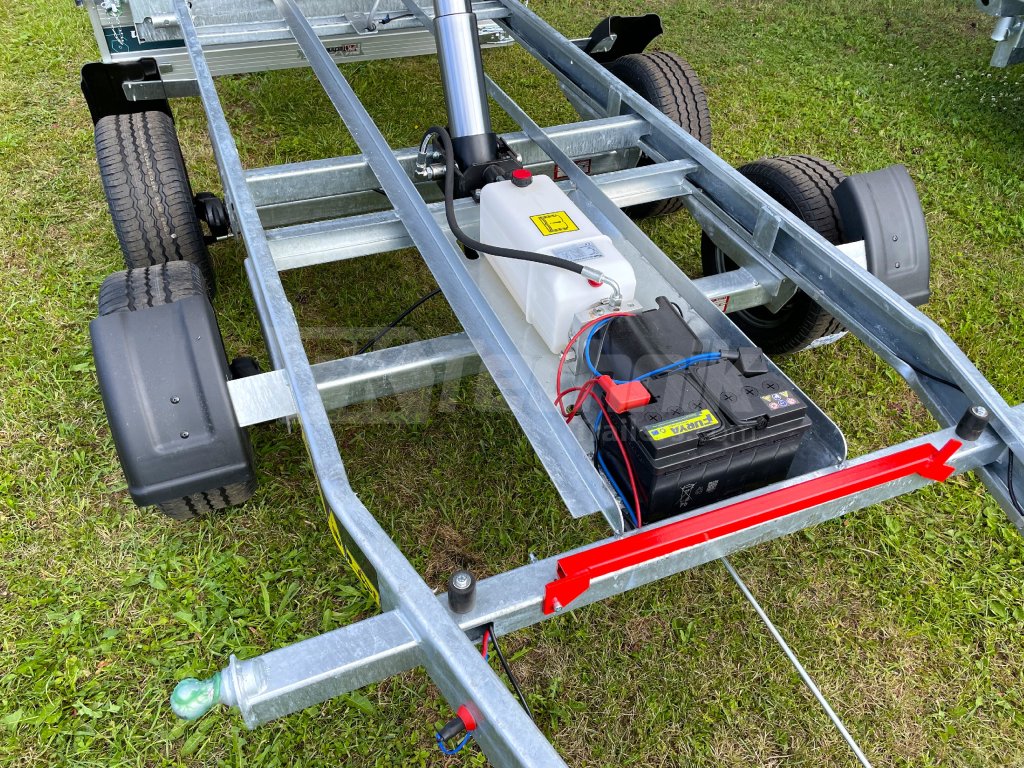

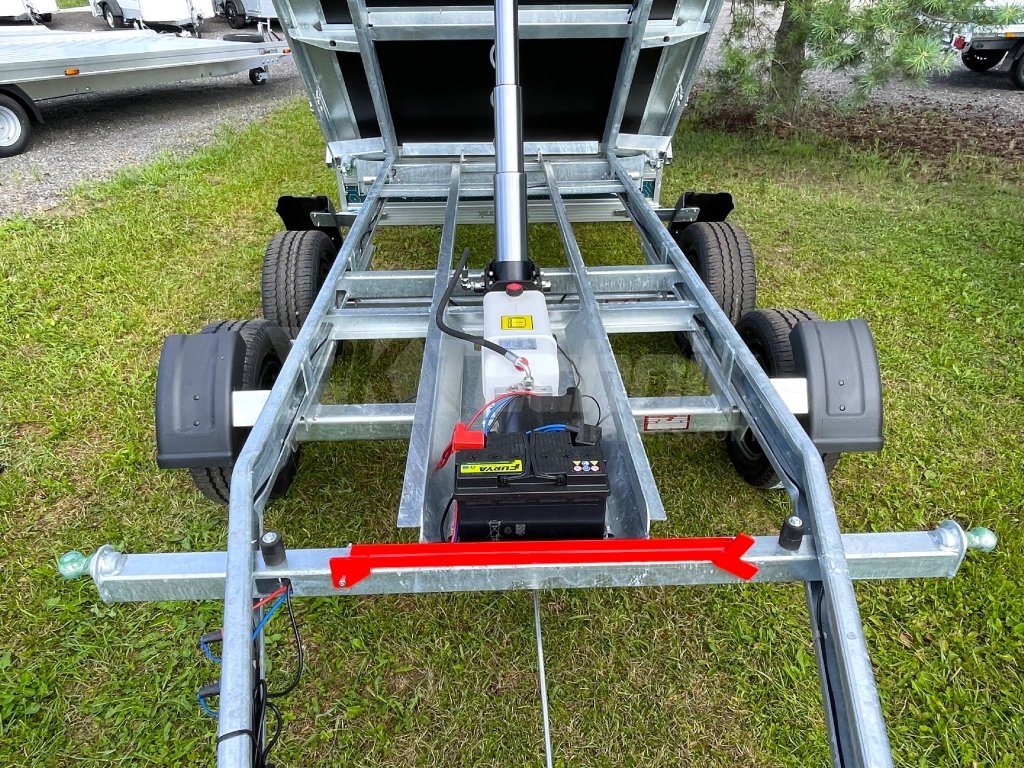

- Built-in 76 Ah battery

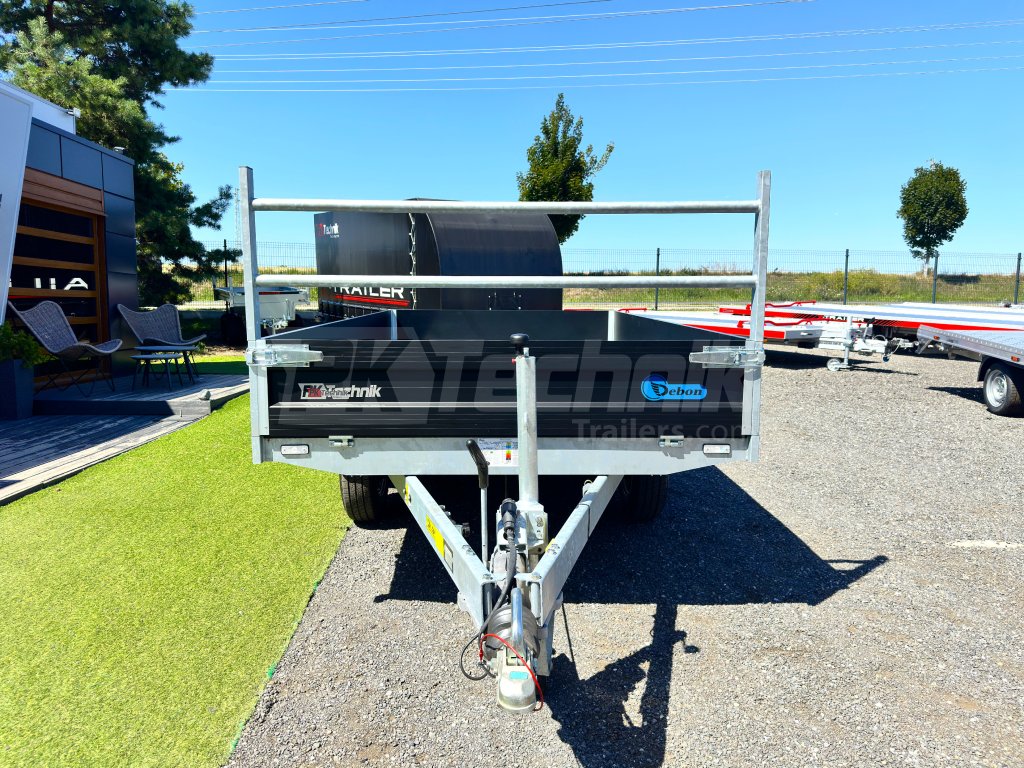

- Front removable "H" profile

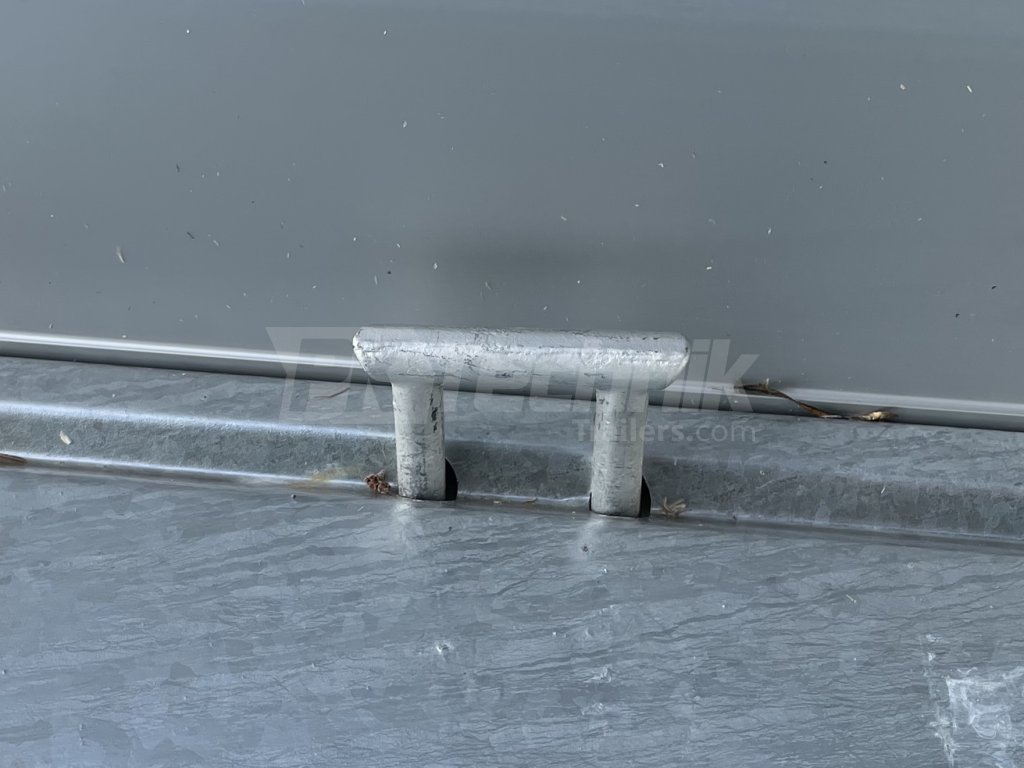

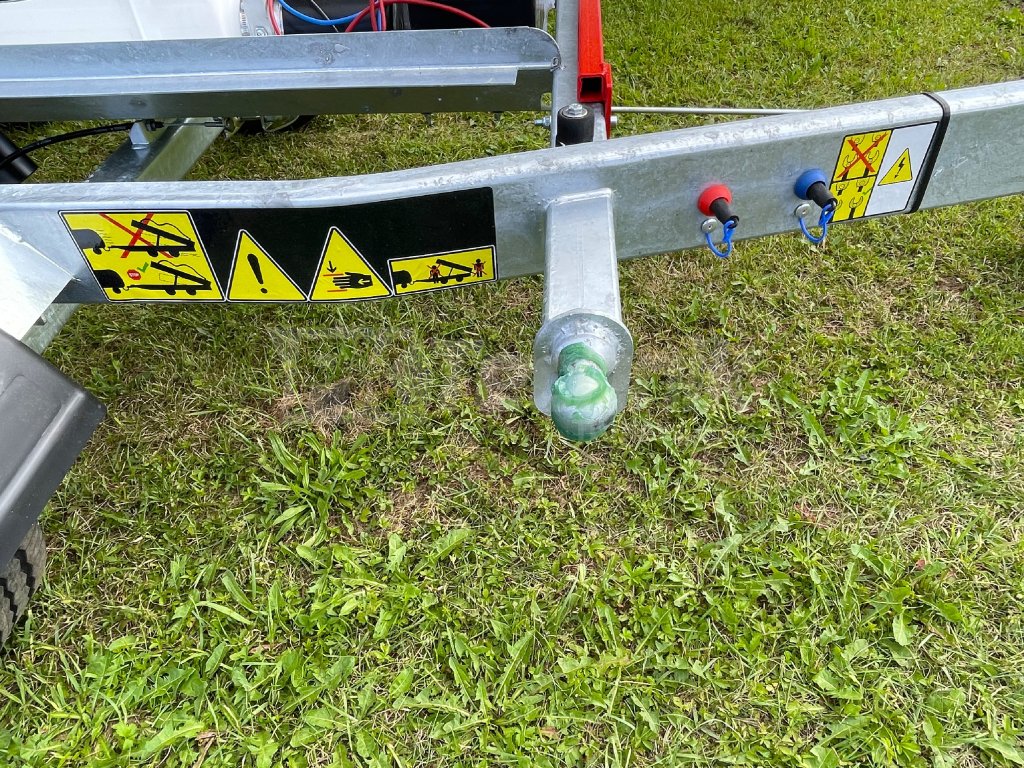

- 8 x anchoring eye on the loading surface

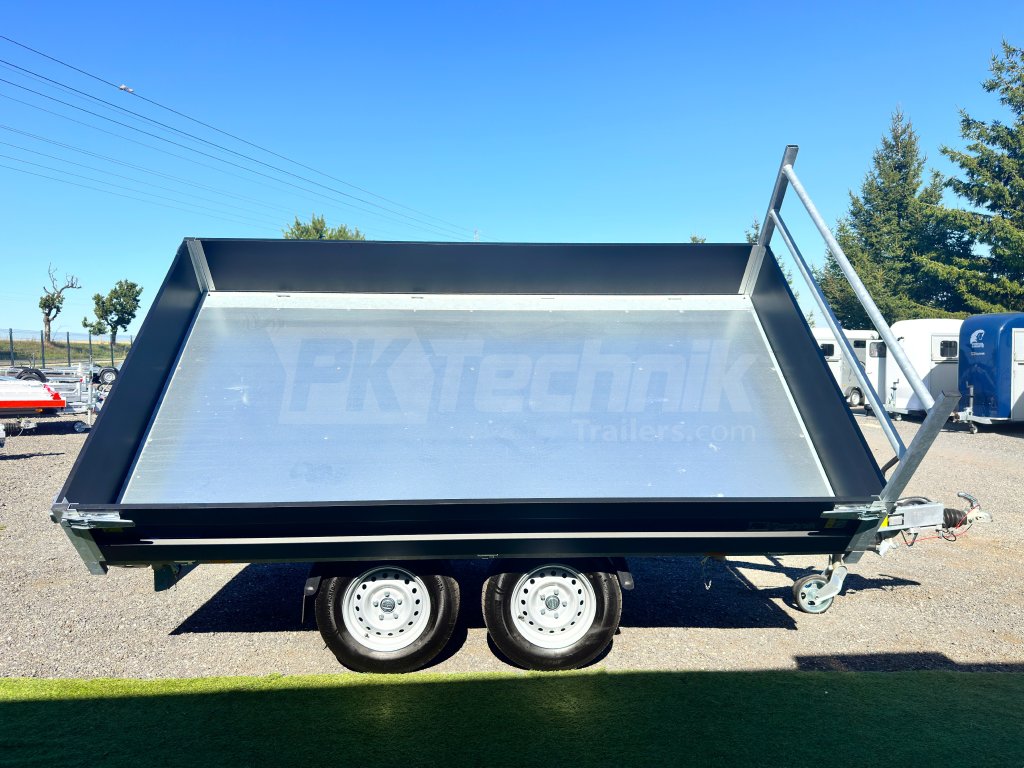

- Galvanised sheet metal on the loading area

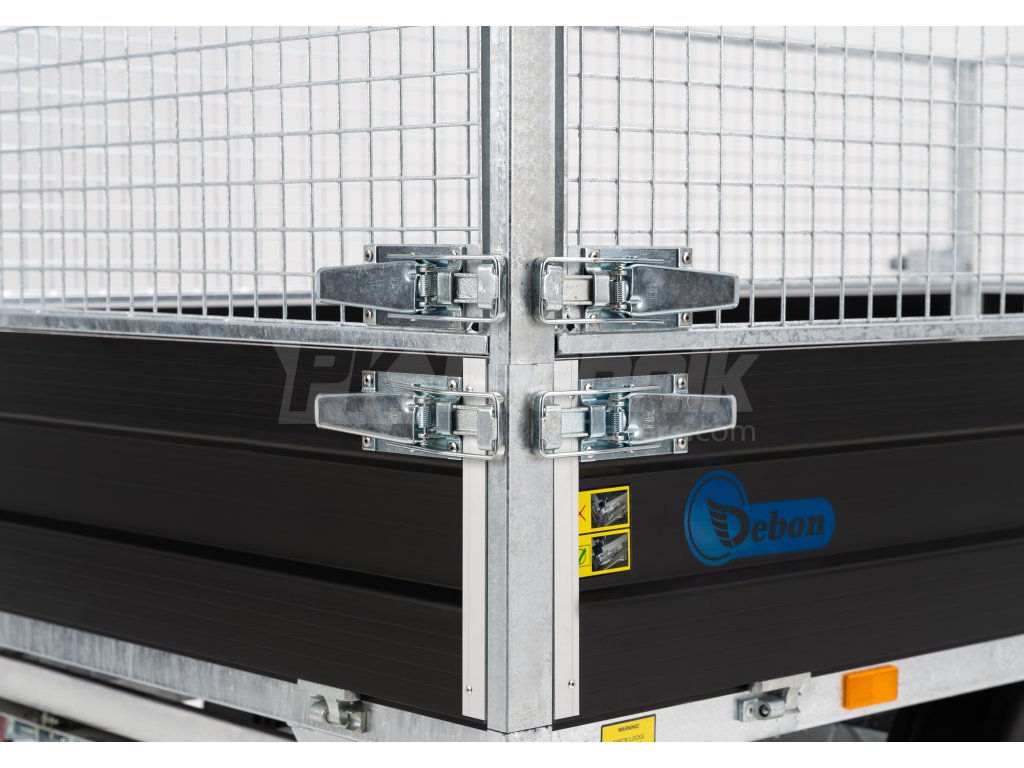

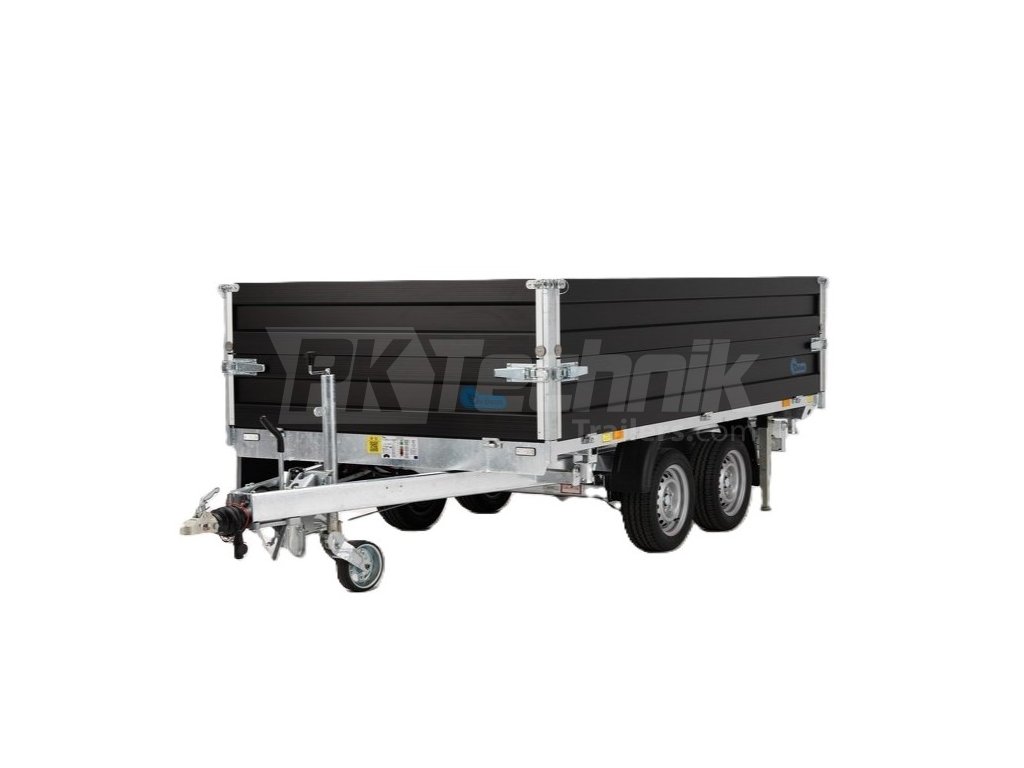

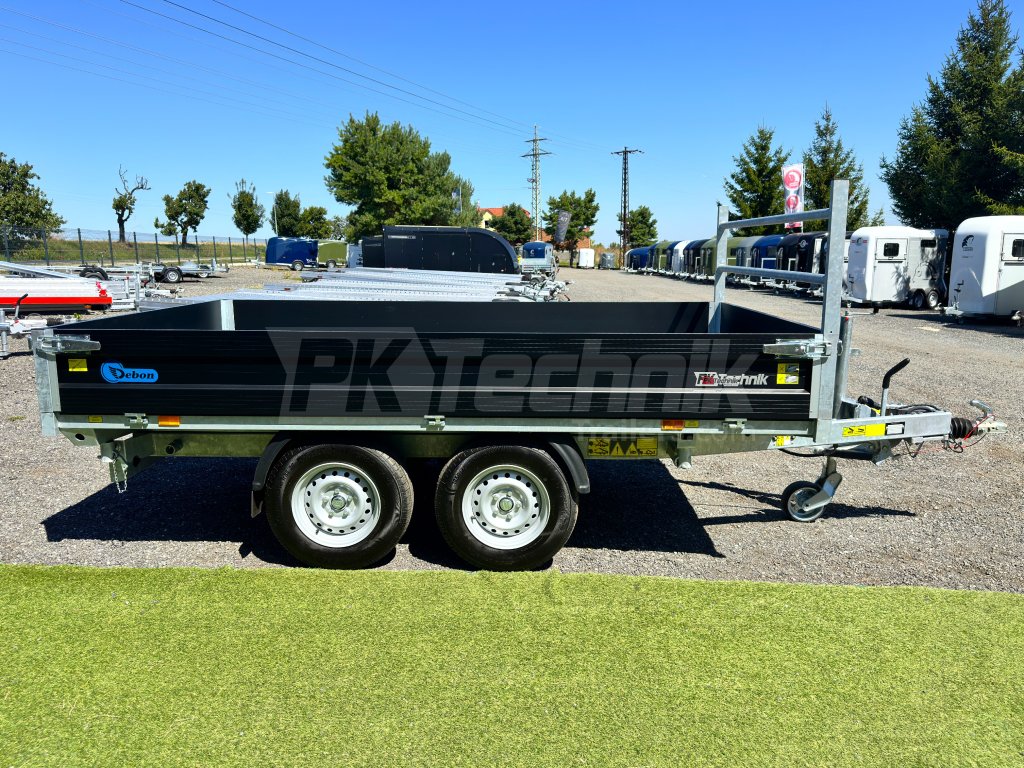

- 4 removable side panels (aluminum)

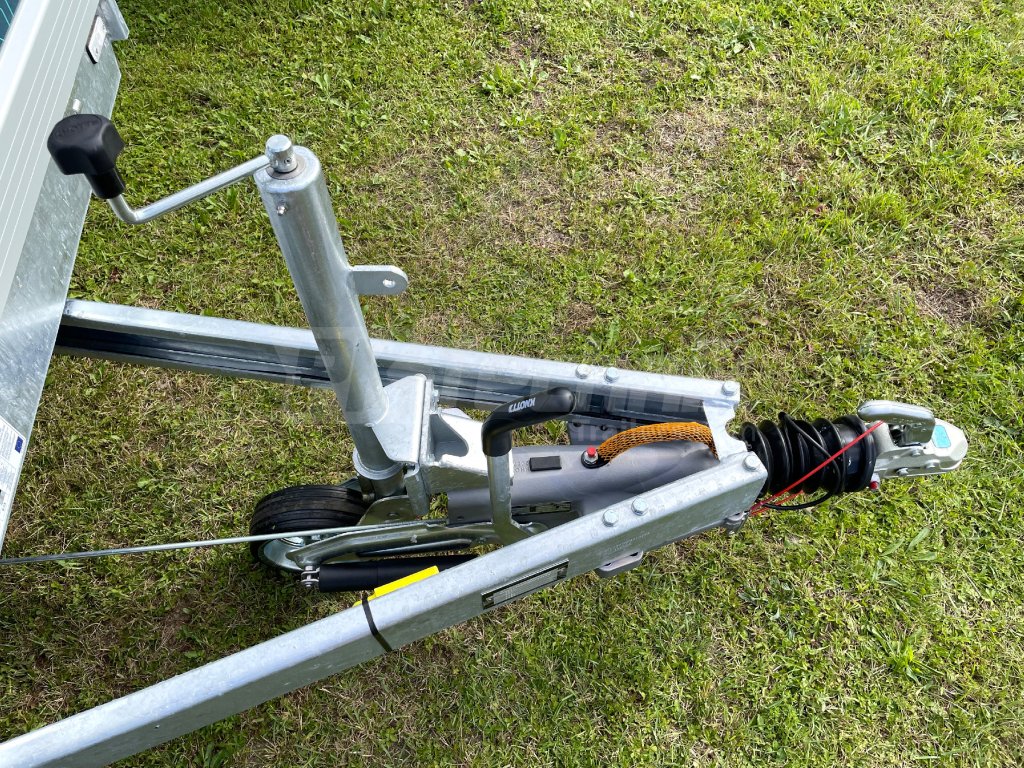

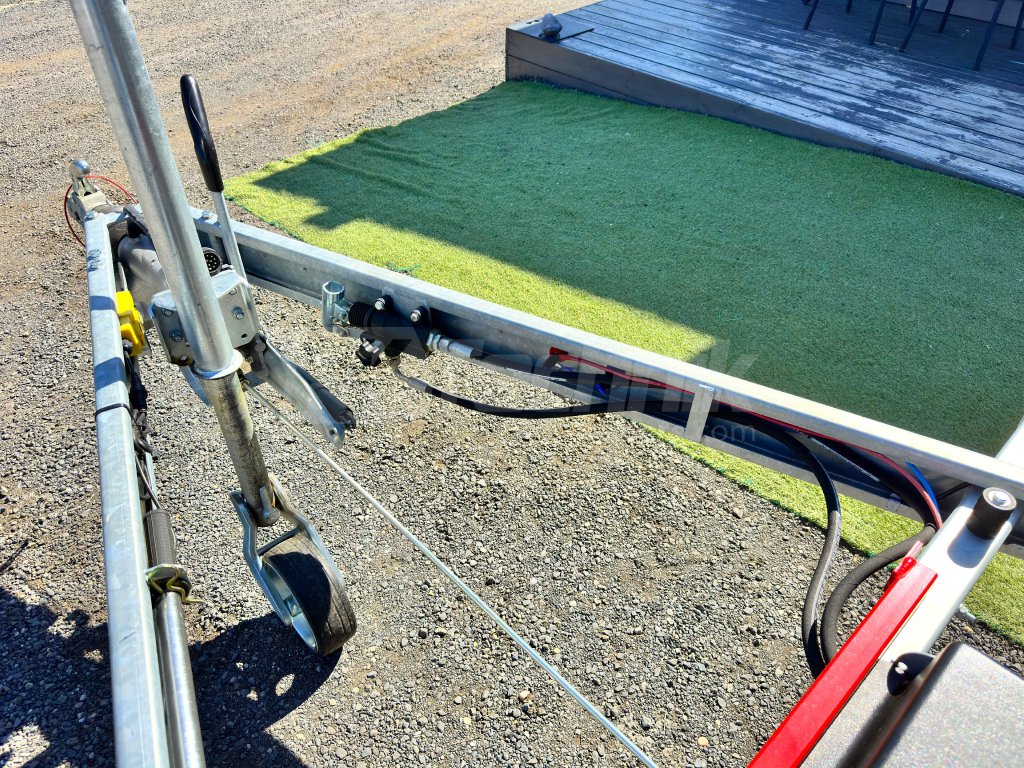

- Automatic support wheel

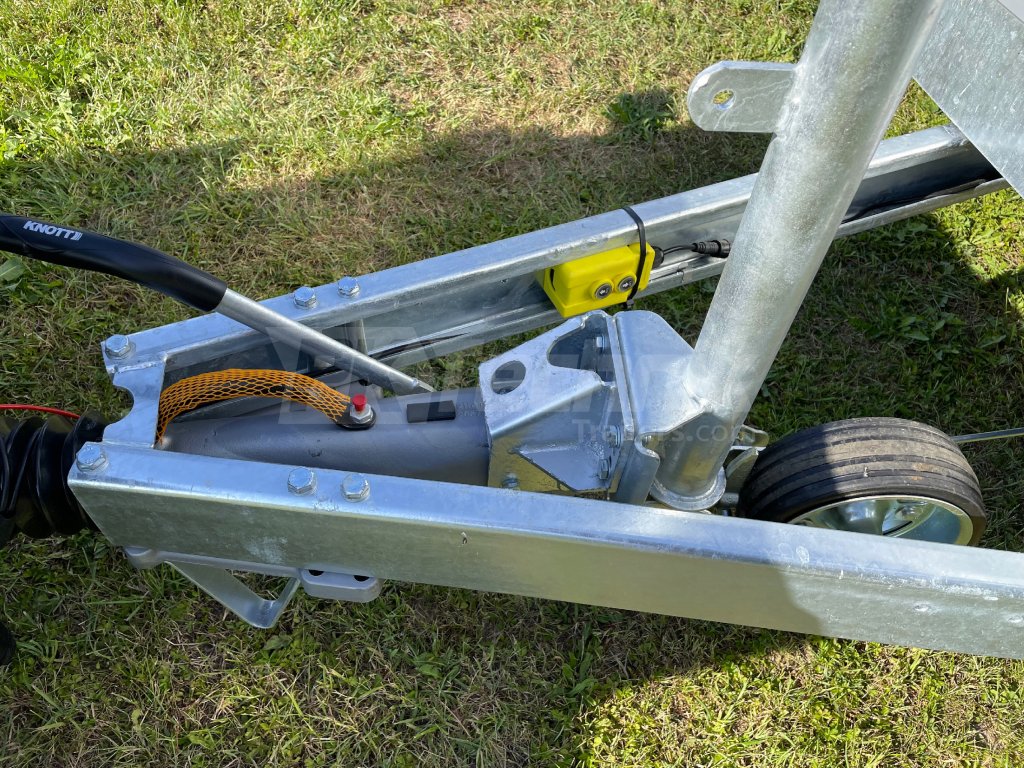

- Overrun brake: KNOTT
- Wiring: 13 PIN
- Battery charging ports

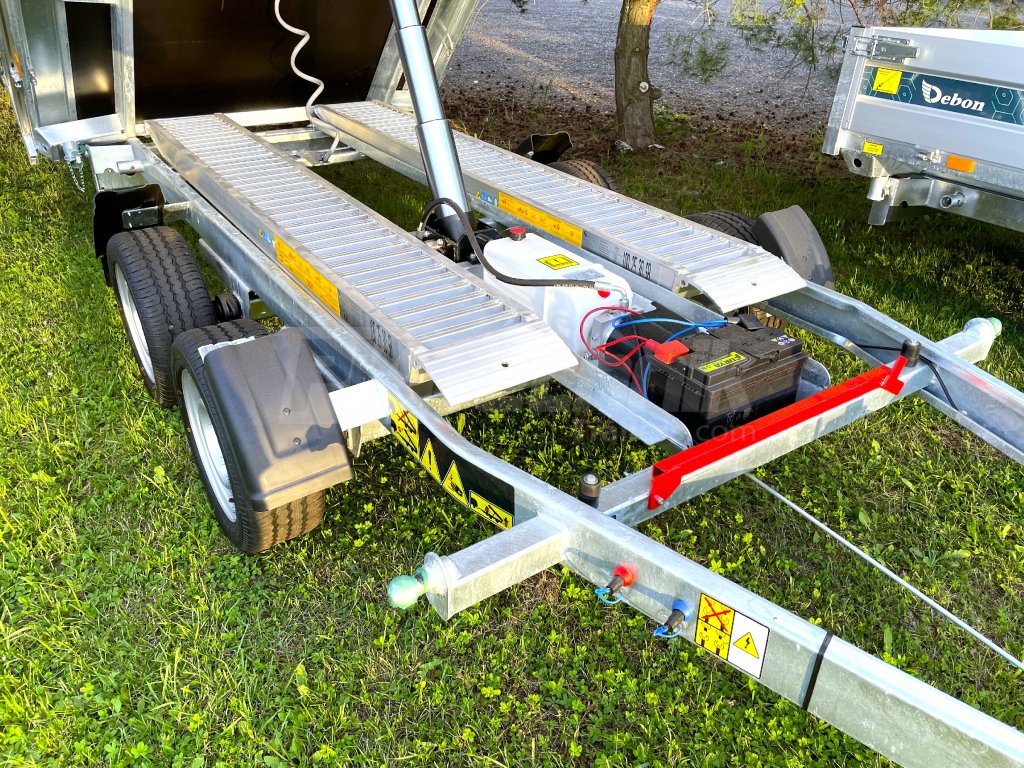

+ Storage space for ramps under the loading area
Equipment at extra cost:
- Spare wheel R13
- Spare wheel R14
- Axle shock absorbers

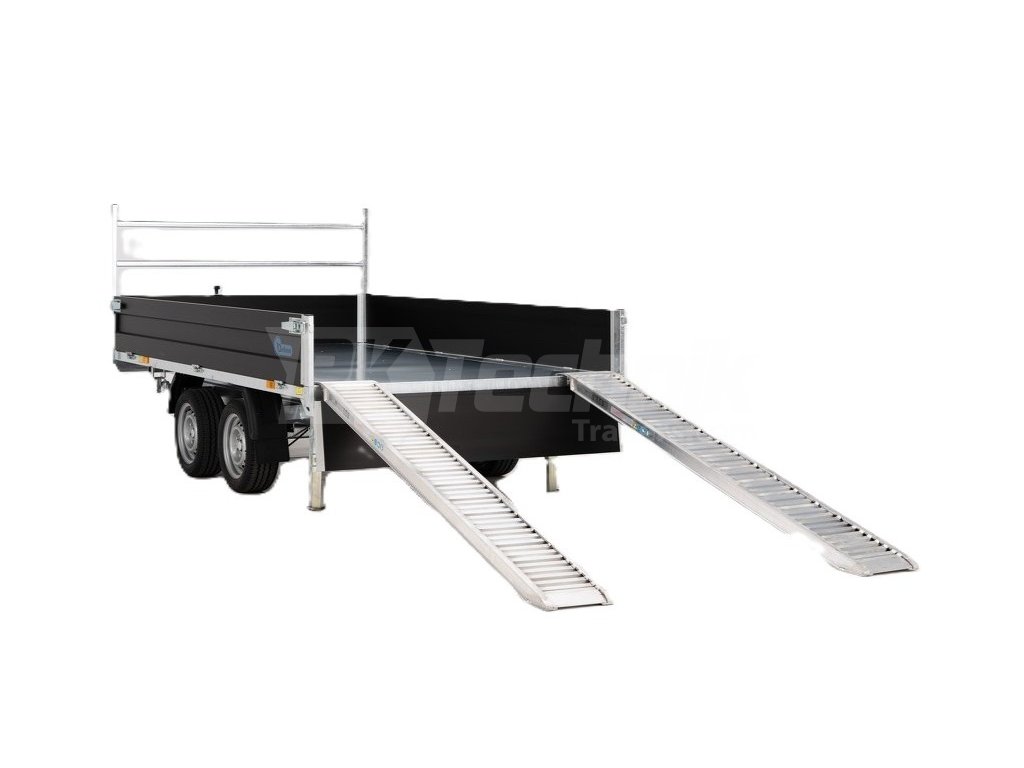

- ALU ramps
- Extendable support legs
- Second (rear) H profile
- Spare wheel holder

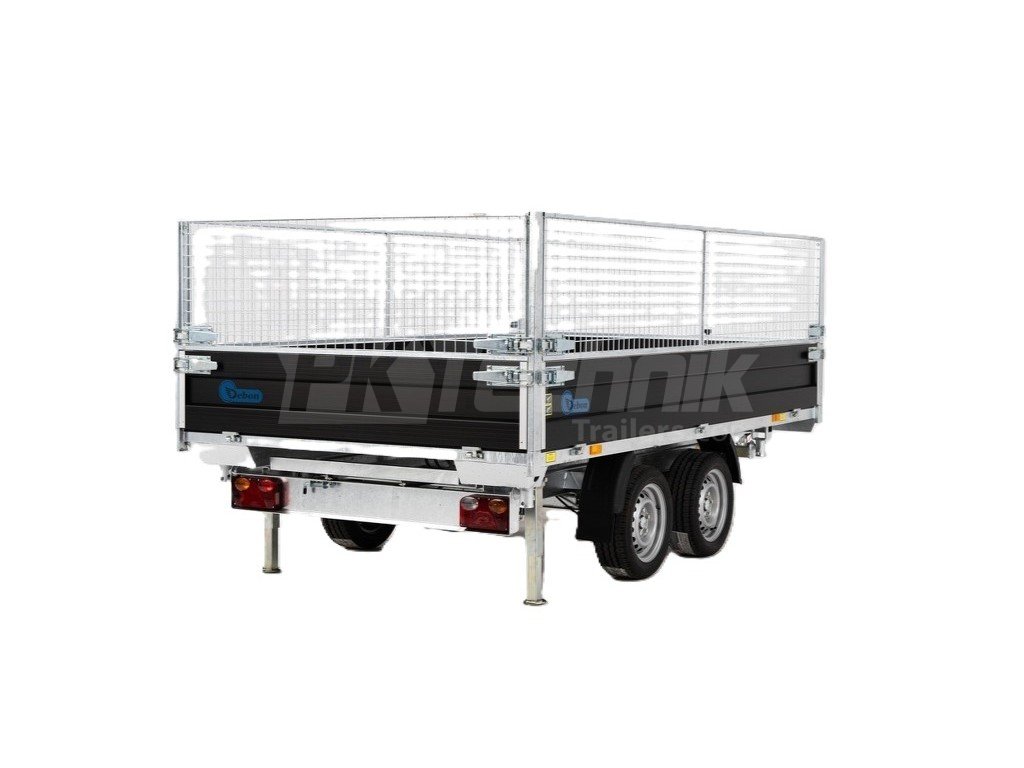

- 2nd row MESH sidewalls
- 2nd row of ALU side panels
- tarpaulin
Product video:
About Cheval Liberté and Debon
French company Cheval Liberté, which has been on the market since 1995, is an absolute top European trailer sales. Under the brand name Debon develops and sells box and folding flatbed trailers, drawing on industry experience and engineering gained over 25 years in the horsebox business.
Debon trailer standards are approaching automotive standards thanks to unrivalled Pullman 2 chassis with independent suspension on each wheel for a perfectly smooth ride, together with an aerodynamic body shape debon trailers can thus offer not only a significant fuel saving, but above all very high comfort of the towing vehicle and the transported cargo.
"In Western European markets, Cheval Liberté has great 50% registration of new trailers for the transport of livestock and horses. The other 50% is held by all other manufacturers combined. This in itself proves the fact that Horse Liberty is the absolute market leader in their field," he says Pavel Kabele, company owner PK Technik Trailers, which is the official importer of Cheval Liberté and Debon trailers for the Czech Republic.
"This exceptional popularity and quality is also the basis for the Debon box trailer brand, which is unrivalled on the market thanks to its perfect chassis and aerodynamic body shape. The quality of the trailers is also reflected in the fact that the claimability of Cheval Liberte and Debon trailers is virtually nilat our dealership."
Additional parameters
| Category: | Three-way tipper trailer DEBON PW 3.3 (2700-3500 kg) |
|---|---|
| Warranty: | 2 years |
| Typ přívěsu: | flatbed, dump truck, Tipper trailer, Flatbed trailer, Valník s plachtou |
| Using: | cargo trailer, quad bike transportation, transportation of construction machinery, mini excavator transportation, concrete transportation, sand transportation, wood transportation, grass transportation, transport of palletized goods |
| Trailer brakes: | YES |
| Number of axles: | 2 |
| Axle type: | Torsion axle |
| Folding: | YES, TRILATERALLY, MANUALLY, ELECTROHYDRAULIC |
| Total weight: | 3500 kg |
| Weight loss: | 2700 - 3500 kg |
| Operating weight: | 805 kg |
| Payload: | 2695 kg |
| Total length: | 467 cm |
| Total width: | 192 cm |
| Total height: | 163 cm |
| Length of loading area: | 330 cm |
| Loading area width: | 180 cm |
| Loading area height: | 67 cm |
| Speed: | 140 km/h |
| Spare wheel: | SURCHARGE |
| Axle shock absorbers: | for an additional fee, KNOTT |
