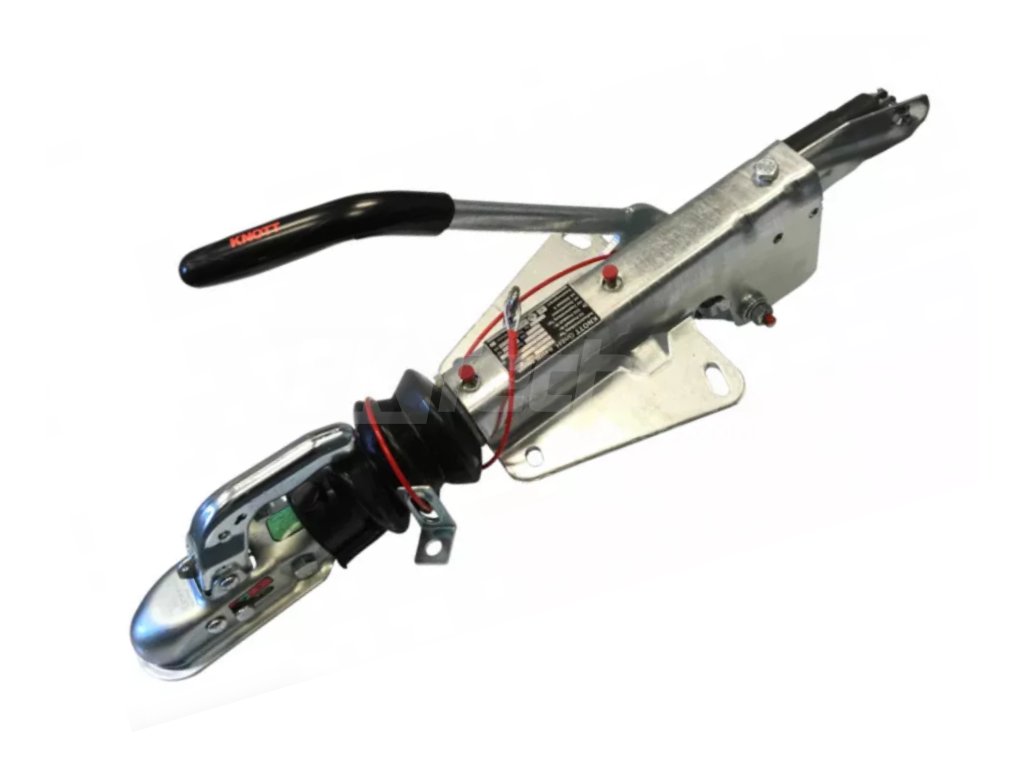

Overrun brake KNOTT KF13-C (GF)
Code: 60005Related products
Product detailed description
This ramp brake is designed for both top and bottom mounting on "V" shaped drawbar.
The brake is supplied complete including the KK14 ball clutch and the safety cable.
for total trailer weight: 750 to 1300 kg
max. permissible vertical load: 100 kg
combinable with wheel units: KNOTT type 16-1365 (160x35) and 20-2425/1 (200x50)
The brake is supplied complete including the KK14 ball clutch and the safety cable.
Additional parameters
| Category: | Overrun brakes for V-shaped drawbar trailers |
|---|---|
| EAN: | 60005007 |
| maximální povolené svislé zatížení (kg): | 100 |
| drawbar mountable: | V-drawbar |
| for total trailer weight max. (kg): | 1300 |
| for total trailer weight min. (kg): | 750 |
| for wheeled units: | KNOTT type 16-1365 (160x35), KNOTT type 20-2425/1 (200x50) |
| bottom mounting: | Yes |
| connecting device: | KK14 |
| top mounting: | Yes |
