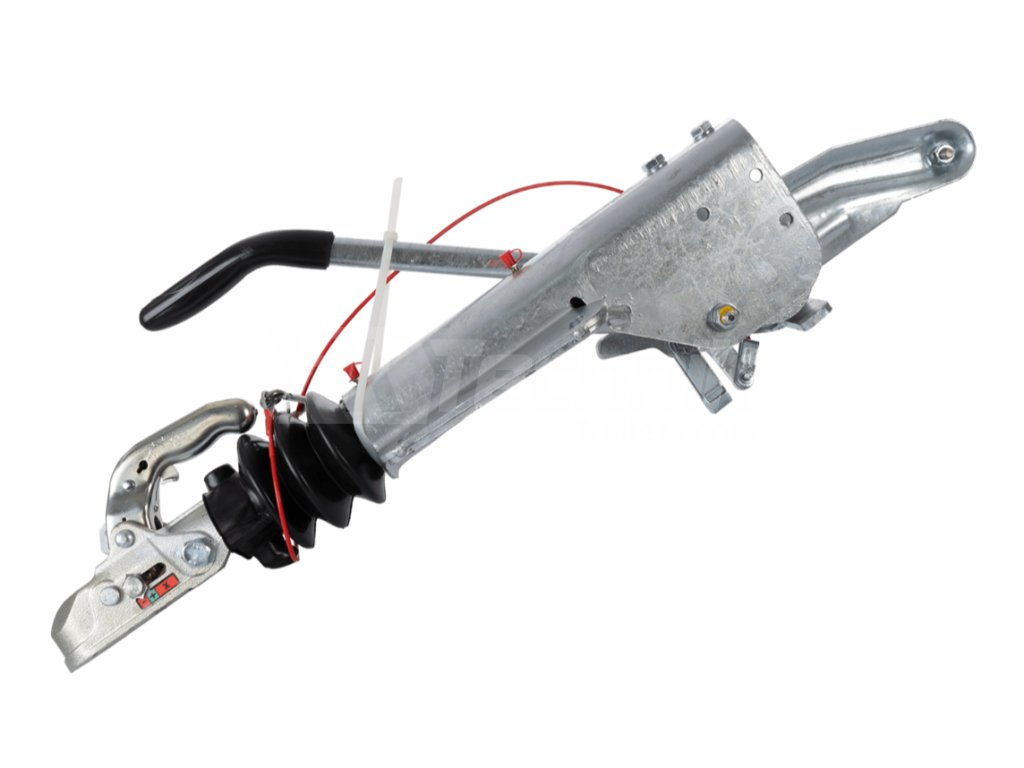

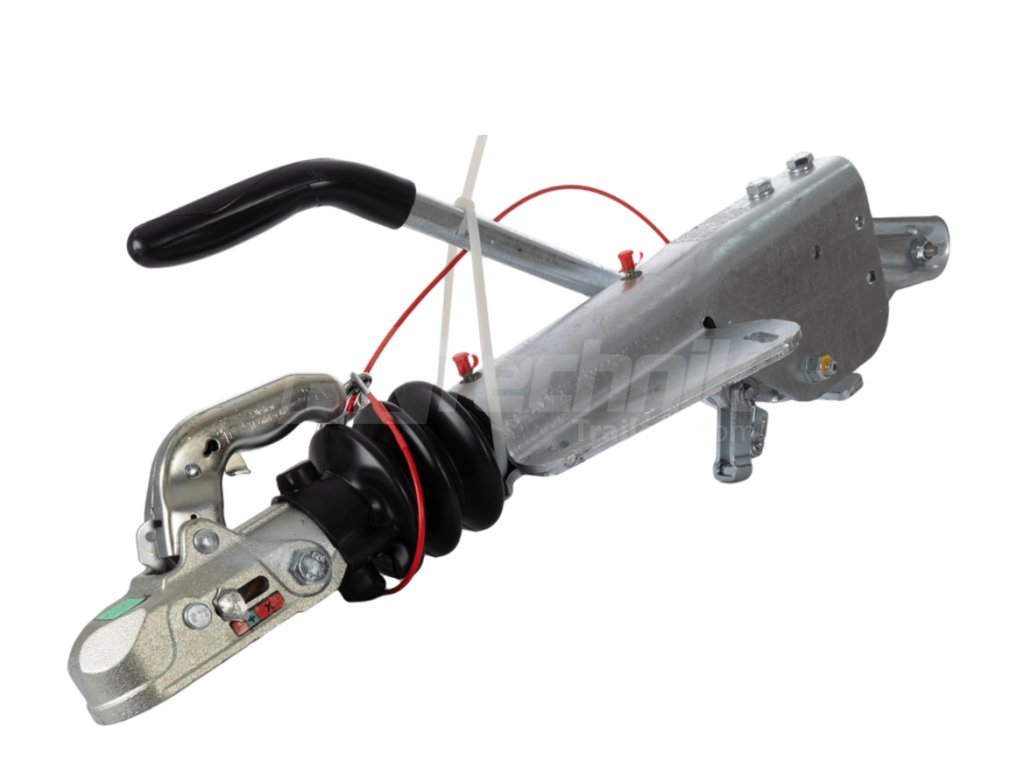

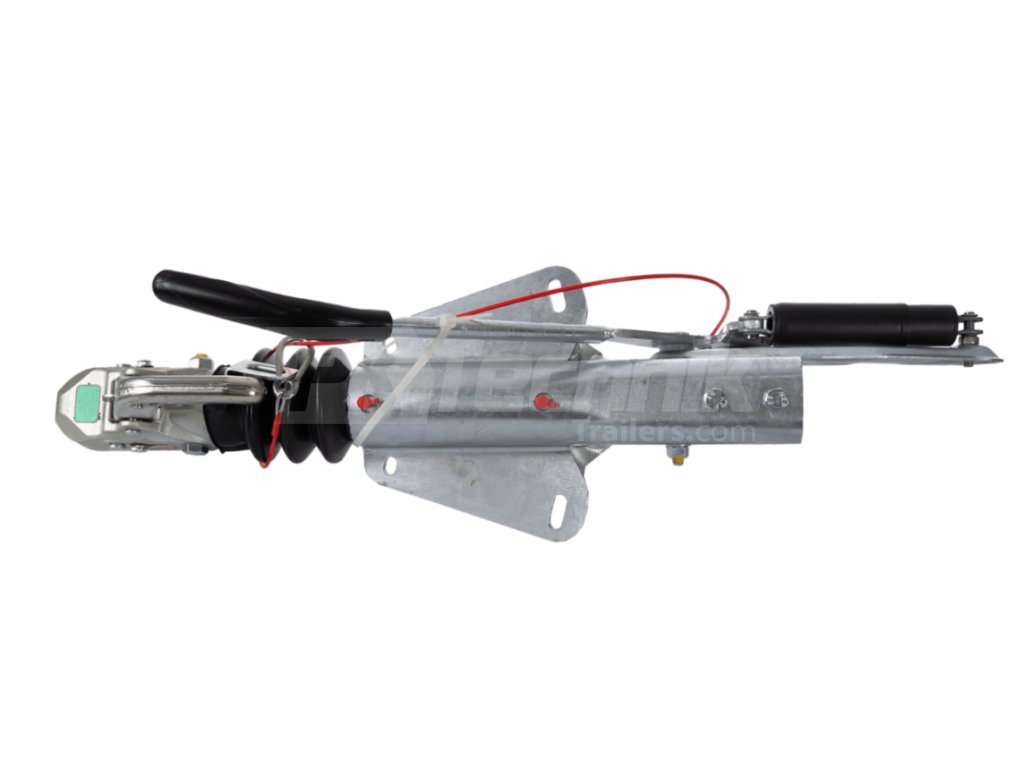

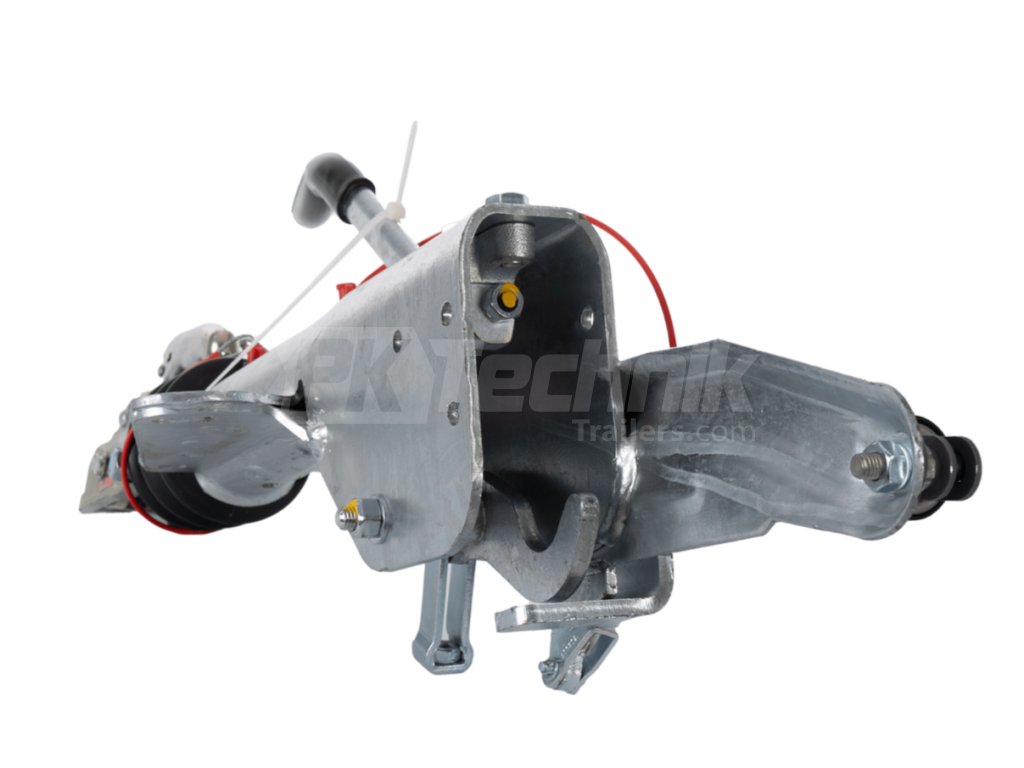

Overrun brake KNOTT KF27-B (GF), replacement for KF27-A
Code: 60009Related products
Product detailed description
This ramp brake is designed for both top and bottom mounting on "V" shaped drawbar.

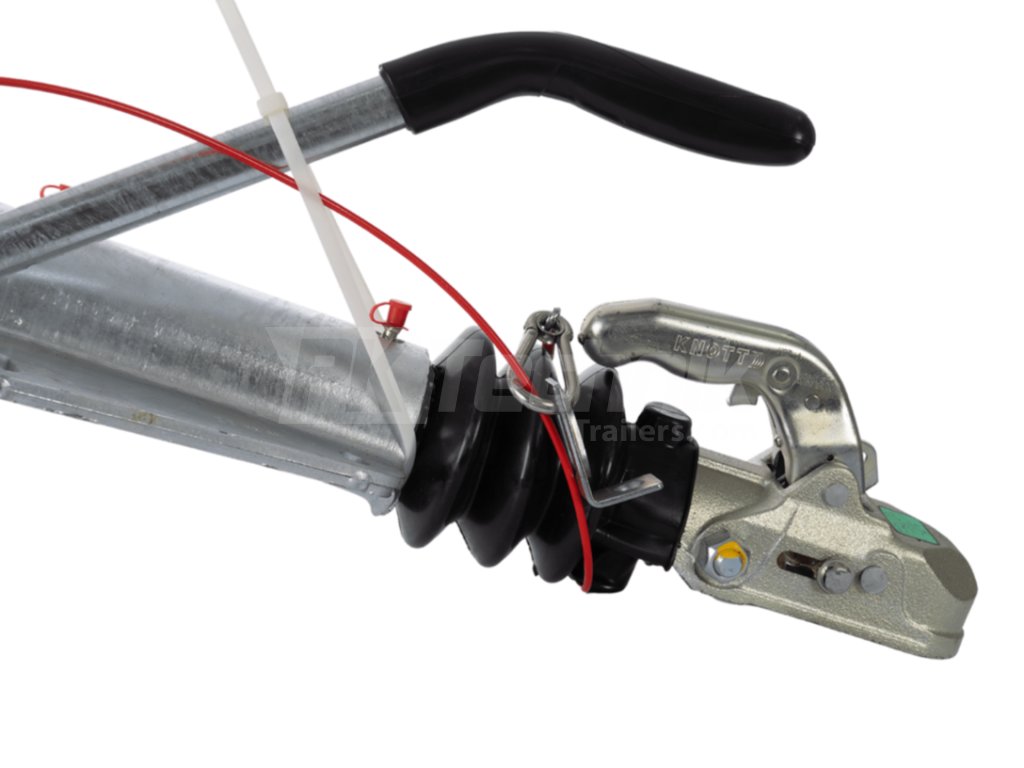

The brake is supplied complete including a tow ball coupling KNOTT K27-A and a safety cable.
Type KF 27 Ausf. B replaces the previously produced KF 27 Ausf. AND. On trailers VAPP, type KF 27 A can be replaced with type B without modification. With trailers from other manufacturers, it may be necessary to shim or adjust the drawbar by about 10 mm when mounting type B.
for total trailer weight: 1400 to 2700 kg
max. permissible vertical load: 100 kg
combinable with bike units: KNOTT type 16-1365 (160x35), 20-2425/1 (200x50), 25-2025 (250x40) and 30-2261 (300x60)
Additional parameters
| Category: | Overrun brakes for V-drawbars |
|---|---|
| EAN: | 60009005 |
| kolová jednotka: | KNOTT 16-1365 (160x35), KNOTT 20-2425 (200x50), KNOTT 25-2025 (250x40), KNOTT 30-2261 (300x60) |
| drawbar mountable: | V-drawbar |
| Trailer Coupling Heads: | KNOTT K27-A |
| maximální povolené svislé zatížení (kg): | 150 |
| for total trailer weight min. (kg): | 1400 |
| for total trailer weight max. (kg): | 2700 |
| bottom mounting: | Yes |
| top mounting: | Yes |
