Brian James Tipper tipping trailer, 360x200, 2 hydraulic cylinders, 2 axles, 3500 kg

Product detailed description

Brian James Tipper 526-3620-35-2-12 is a professional twin-axle tipping trailer with a gross weight of 3500 kg. It offers a clear load area of approximately 3600 × 2000 mm with the side panels fitted. Once the side panels and posts are removed, it provides a flat platform measuring 3700 × 2090 mm. The trailer is designed for intensive daily professional use in construction, agriculture and municipal services, as well as for transporting construction machinery and other equipment.

The Tipper is an exceptionally versatile work trailer. It can transport bulk materials such as sand, gravel, soil or construction rubble, as well as palletised goods, building materials, machinery and a wide variety of general cargo.

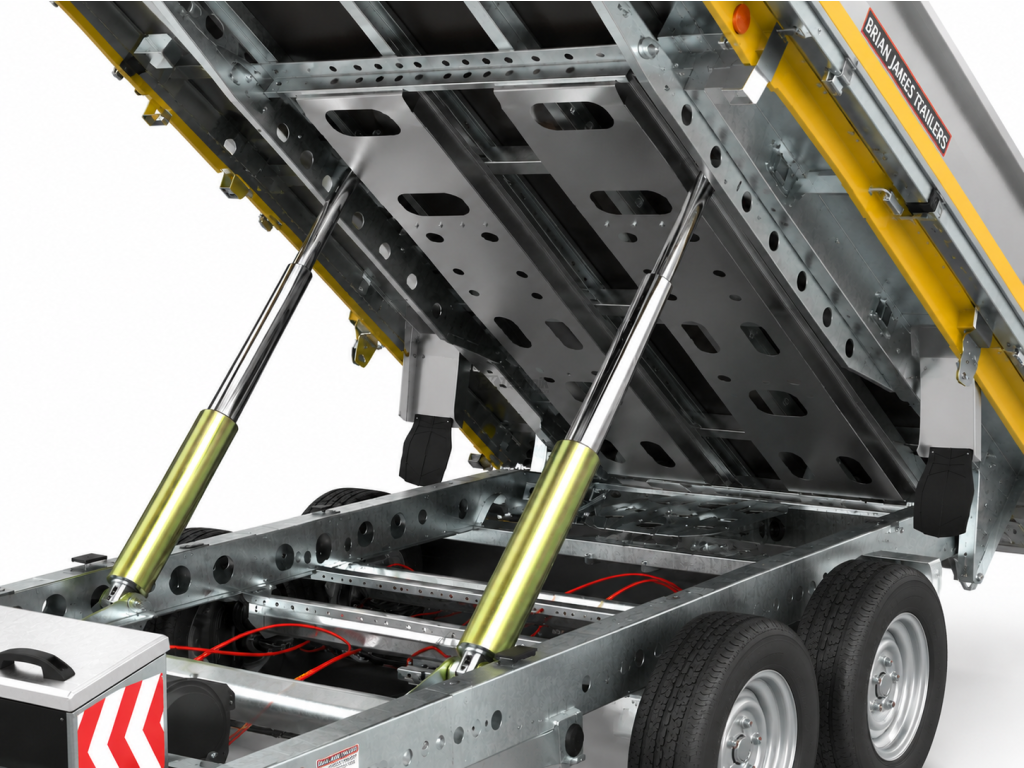

Tipping is powered by a high-performance electro-hydraulic unit with its own 12V battery. This model uses the Twin-Rams system – two hydraulic tipping cylinders, ensuring stable and reliable operation of the tipping mechanism even under intensive working conditions.

Click & Clamp – heavy-duty steel side panels

One of the distinctive features of the Brian James Tipper range is its exceptionally robust steel side panels, approximately 50 mm thick, designed for demanding everyday professional use. Compared with conventional lightweight aluminium side panels, they provide an extremely strong construction and high durability when transporting building materials, machinery and bulk loads. The distinctive coloured strip on the side panels is available in five finishes: yellow, red, blue, anthracite or black.

The Click & Clamp system uses self-adjusting locking posts combined with a side-panel clamping system. This increases the rigidity of the entire structure while reducing unwanted movement and rattling of the side panels during transport.

The side panels and posts can be completely removed, easily converting the trailer into a flat platform measuring 3700 × 2090 mm. With the side panels fitted, the clear usable load area is approximately 3600 × 2000 mm. This design significantly expands the trailer's versatility, for example when transporting pallets, building materials, machinery or bulky loads.

2-Way Tailgate – dual-function rear tailgate

The standard rear tailgate features the 2-Way Tailgate system. The tailgate can be conventionally lowered for normal loading and unloading, or secured at the top using the mechanism integrated into the rear posts and used as a swinging tailgate for convenient and controlled discharge of bulk materials.

As an option, the trailer can also be equipped with a split rear tailgate measuring 2000 × 308 mm, which opens sideways in a similar way to container doors and makes handling different types of cargo easier.

Professional construction and load bed

The Brian James Tipper is designed for demanding professional use. A highly robust reinforced main chassis and load bed are fitted as standard. Heavy-duty integrated lashing points in the floor and along the sides of the chassis allow transported loads, construction machinery and other equipment to be securely fastened.

The electro-hydraulic system battery features maintenance charging from the towing vehicle. The lockable front storage box protects the electro-hydraulic unit, battery and associated equipment, such as the charger and emergency power cables.

Transporting mini excavators and construction machinery

The Tipper can be equipped with heavy-duty Brian James steel loading ramps for transporting mini excavators, skid-steer loaders, garden machinery and other work equipment. The ramps are available in two lengths – 1800 mm and 2350 mm.

The shorter 1800 mm ramps provide a loading angle of approximately 24°, while the longer 2350 mm ramps reduce the loading angle to approximately 18°. The longer version is therefore particularly suitable for machinery with lower ground clearance or a less favourable approach angle.

The maximum permitted weight of the vehicle being loaded depends on the length of the ramps and the wheelbase of the vehicle, or the track contact length in the case of tracked machinery. During loading, the ramps are securely connected to the trailer. After use, they can be stored and secured against unwanted movement in the integrated compartments beneath the load bed.

For safer loading of heavier machinery, the trailer can also be equipped with rear support legs. These stabilise the rear of the trailer while machinery is being loaded and also reduce excessive loads on the overrun brake and drawbar during loading.

Thanks to its combination of a tipping body, removable side panels, the ability to create a flat platform and a wide range of accessories, the Brian James Tipper is an exceptionally robust and versatile professional work trailer.

Optional equipment for Brian James Tipper 526-3620-35-2-12

Brian James R12 alloy wheels

Split rear tailgate, 2000 × 308 mm

Steel loading ramps 1800 mm or 2350 mm

Rear support legs

Additional side panels +308 mm

Additional perforated side panels +660 mm

Additional solid side panels +660 mm
